REAR OUTER HANDLE REMOVAL/INSTALLATION

id091400510200

1.  Fully close the rear door glass.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION.)

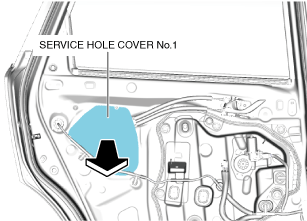

4.  Remove service hole cover No. 1 in the direction of the arrow shown in the figure.

ac8wzw00000017

5.  Remove the service hole cover.

ac8wzw00000018

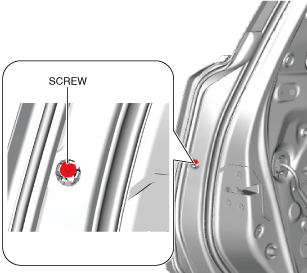

6.  Loosen the screw from the rear outer handle bracket.

ac8wzw00000019

Note

•  The screw cannot be removed because the rear outer handle bracket has a stopper which prevents the screw from falling.

7.  While pressing the rear outer handle bracket tab in the direction of arrow (1) shown in the figure, pull the outer handle garnish in the direction of arrow (2) to detach the rear outer handle bracket from the outer handle garnish.

ac8wzw00000020

8.  Remove the outer handle garnish from the rear outer handle bracket.

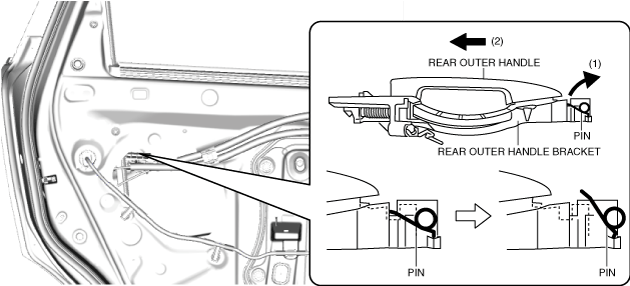

9.  While pulling the rear outer handle bracket pin in the direction of arrow (1) shown in the figure, pull the rear outer handle in the direction of arrow (2) to detach the rear outer handle bracket pin from the rear outer handle.

ac8wzw00000021

10.  Remove the rear outer handle in the direction of the arrow shown in the figure.

ac8wzw00000022

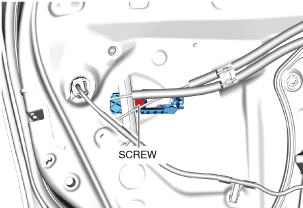

11.  Loosen the screw from the rear outer handle bracket.

ac8wzw00000023

Note

•  The screw cannot be removed because the rear outer handle bracket has a stopper which prevents the screw from falling.

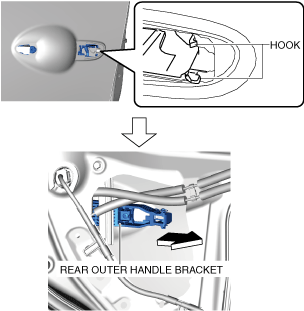

12.  Pull the rear outer handle bracket in the direction of arrow shown in the figure and detach the rear outer handle bracket hooks from the body.

ac8wzw00000024

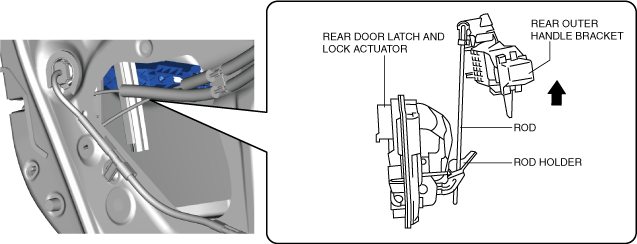

13.  Lift the rear outer handle bracket in the direction of arrow shown in the figure to pull the rod out of the rod holder. (See Rear Outer Handle Bracket Installation Note)

ac8wzw00000025

14.  Remove the rear outer handle bracket.

15.  Remove the handle seat from the body.

ac8wzw00000026

16.  Install in the reverse order of removal.

Rear Outer Handle Bracket Installation Note

•  To assure that the rod is inserted into the rod holder hole, verify that the there is no excessive play.

ac8wzw00000027
