COWL GRILLE REMOVAL/INSTALLATION

id091600801000

1.  Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION.)

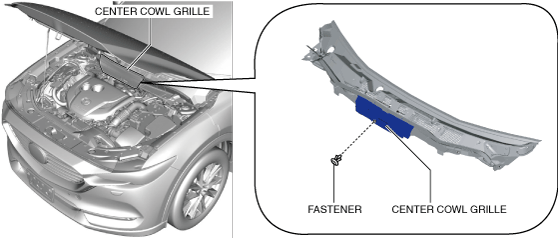

2.  Remove the fastener.

ac8wzw00000786

3.  Remove the center cowl grille.

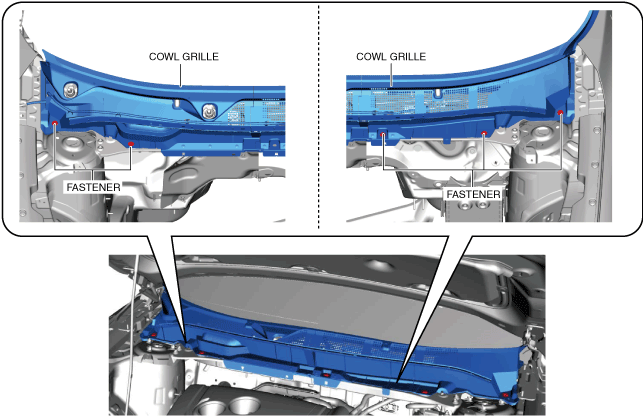

4.  Remove the fasteners.

ac8wzw00000787

5.  Disconnect the joint pipe A of the windshield washer hose. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION.)

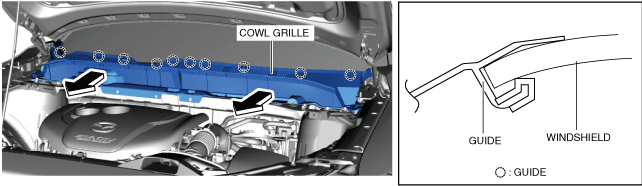

6.  Move the cowl grille in the direction of the arrows shown in the figure and remove it while detaching the guides from the windshield.

ac8wzw00000788

7.  Install in the reverse order of removal.
