SIDE STEP MOLDING INSTALLATION

id091600804300

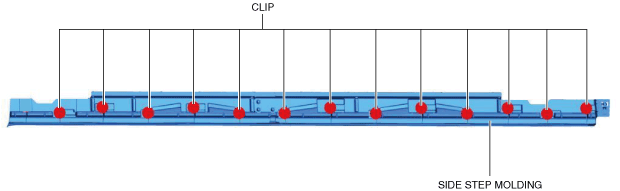

1.  Install the clips to the side step molding.

ac8wzw00000796

2.  Press the side step molding in the order of the arrows shown in the figure and install the clips and the tab to the body panel.

ac8wzw00000797

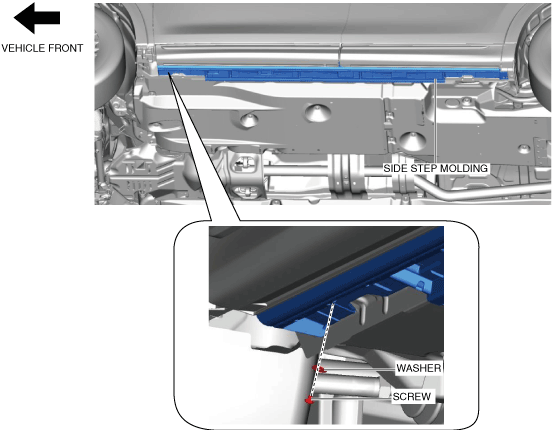

3.  Install the screw and washer.

ac8wzw00000798

4.  Install the front over fender lower. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)
