SIDE STEP MOLDING REMOVAL

id091600804400

1.  Remove the front over fender lower. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

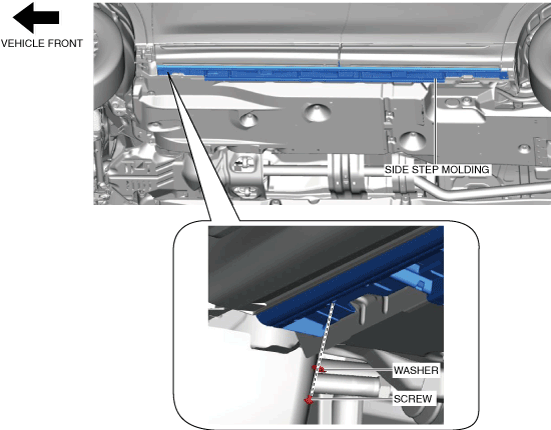

2.  Remove the screw and the washer.

ac8wzw00000799

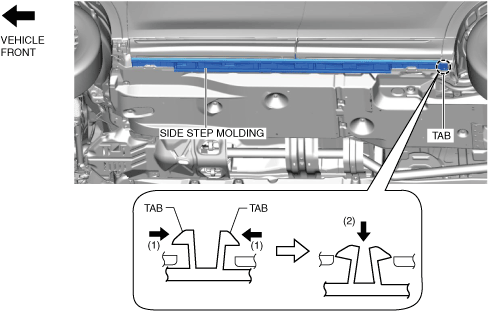

3.  While pressing the tabs in the directions of arrows (1) shown in the figure, move the side step molding in the direction of arrow (2) and detach the tabs.

ac8wzw00000800

4.  Slide the side step molding in the direction of the arrows shown in the figure and remove the side step molding.

ac8wzw00000801

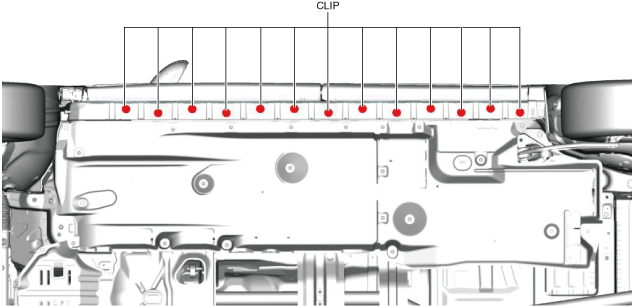

5.  Remove the clips from the body.

ac8wzw00000802
