DOOR SASH FILM INSTALLATION

id091600805300


Front Door Sash Film

Replacement part

Front door sash film

Quantity: 2

Location of use: Front door sash film

1.  Remove any grease or dirt from the contacting surface of the front door sash film.

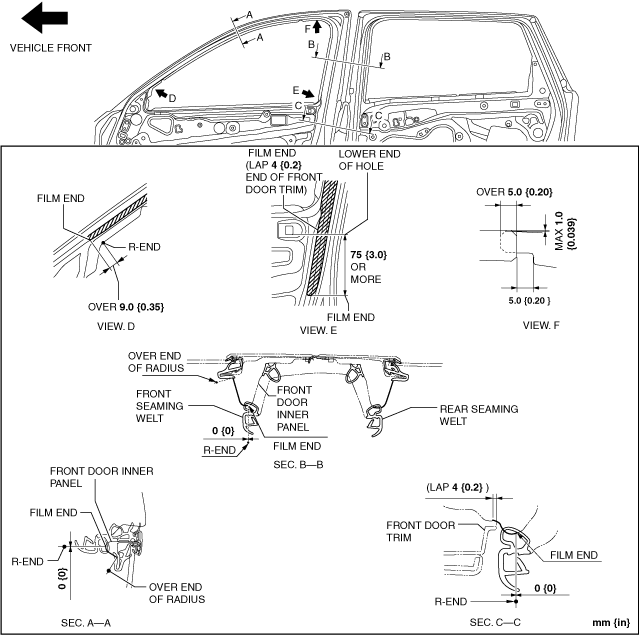

2.  Peel off the tape backing and attach the front door sash film to the position shown in the figure.

ac8wzw00000815

3.  Install the following parts:

(1)  Glass run channel
(2)  Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)
(3)  Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)
(4)  Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)


Rear Door Sash Film

Replacement part

Rear door sash film

Quantity: 2

Location of use: Rear door sash film

1.  Remove any grease or dirt from the contacting surface of the rear door sash film.

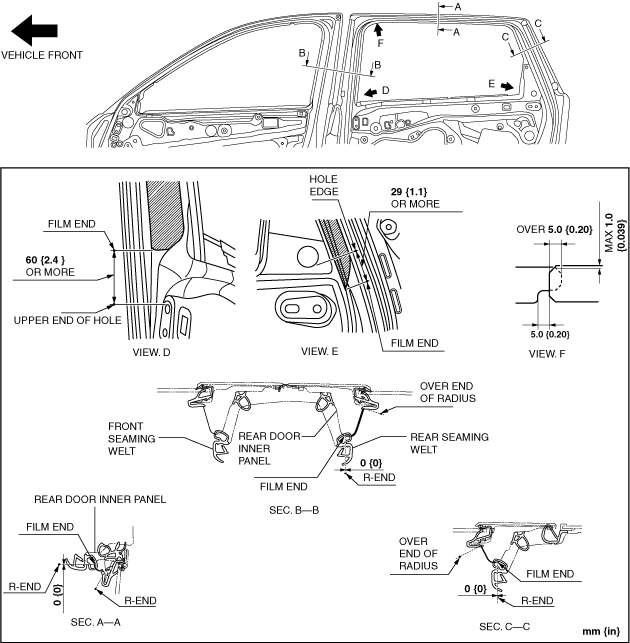

2.  Peel off the tape backing and attach the rear door sash film to the position shown in the figure.

ac8wzw00000816

3.  Install the following parts:

(1)  Glass run channel
(2)  Rear door glass (See REAR DOOR GLASS REMOVAL/INSTALLATION.)
(3)  Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION.)
(4)  Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION.)
