SPLASH SHIELD REMOVAL/INSTALLATION


id091600808400


Front Splash Shield

1.  Remove the front mudguard. (See MUDGUARD REMOVAL/INSTALLATION.)

2.  Remove the fasteners.

ac8wzw00000823

3.  Remove the front splash shield.

4.  Install in the reverse order of removal.


Rear Splash Shield

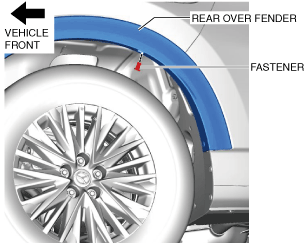

1.  Remove the fastener.

ac8wzw00000824

2.  Remove the fastener.

ac8wzw00000825

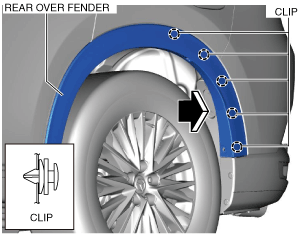

3.  Pull the rear over fender in the direction of the arrow shown in the figure and detach the clips shown in the figure.

ac8wzw00000826

Caution
•  After removing the clips, insert a cloth into the position shown in the figure and secure with tape to prevent the outer side frame and the rear over fender from being scratched or damaged.
ac8wzw00000827

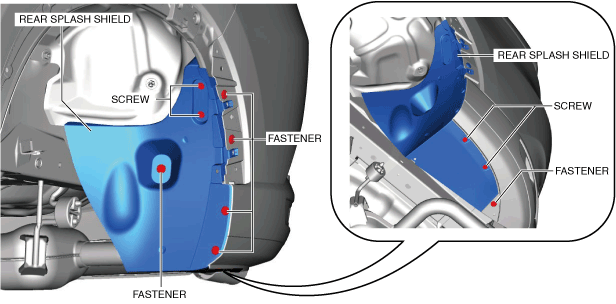

4.  Remove the fasteners.

ac8wzw00000828

5.  Remove the screws.

6.  Detach the tabs from the rear bumper and remove the rear splash shield.

ac8wzw00000829

7.  Install in the reverse order of removal.
