MUDGUARD REMOVAL/INSTALLATION

id091600467600


Front Mudguard

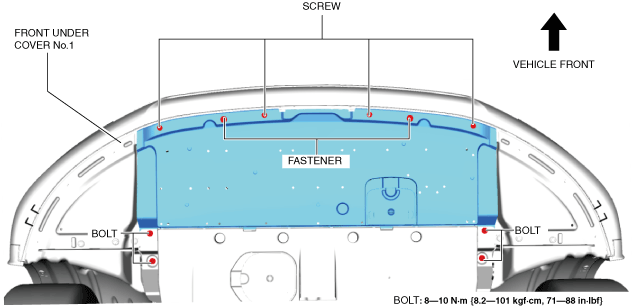

1.  Remove the screws.

ac8wzw00003113

2.  Remove the fasteners.

3.  Remove the bolts.

4.  Remove the front over fender. (See FRONT OVER FENDER REMOVAL/INSTALLATION.)

5.  Partially peel back front under cover No.1 and remove the screws.

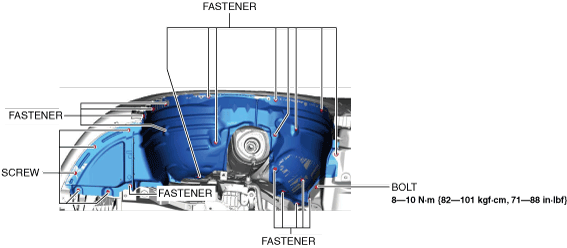

LH

ac8wzw00003114

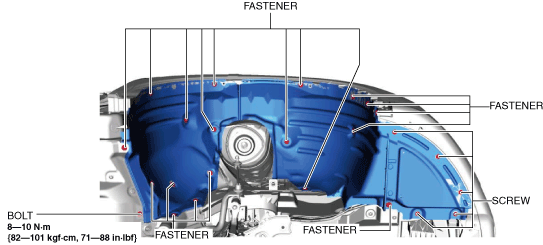

RH

ac8wzw00003115

6.  Remove the fasteners.

7.  Remove the bolt.

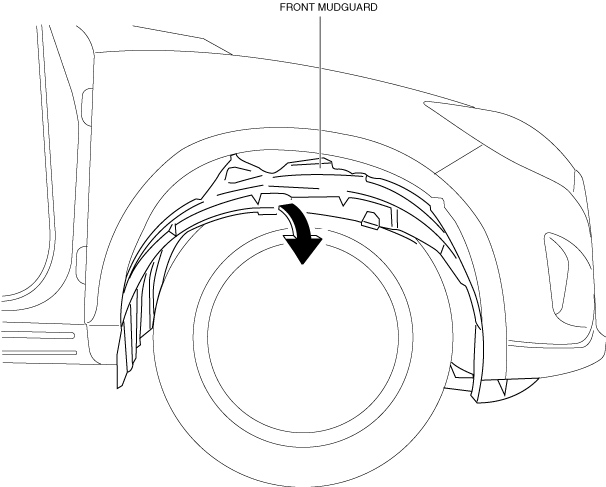

8.  Move the front mudguard in the direction of the arrow shown in the figure and remove it.

ac8wzw00003116

9.  Remove the front deflector. (See DEFLECTOR REMOVAL/INSTALLATION)

10.  Install in the reverse order of removal.


Rear Mudguard

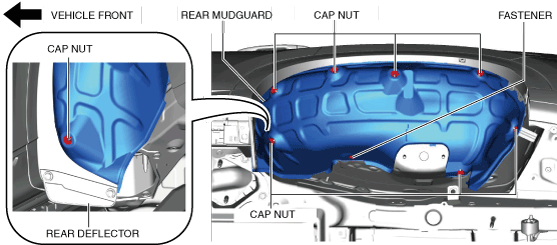

LH
1.  Remove the fastener.
ac8wzw00003117
2.  Remove the cap nuts.
3.  Remove the rear mudguard.
4.  Install in the reverse order of removal.

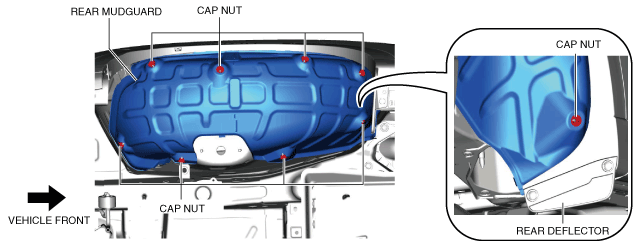

RH
1.  Remove the cap nuts.
ac8wzw00003118
2.  Remove the rear mudguard.
3.  Install in the reverse order of removal.
