HEEL CUSHION REMOVAL/INSTALLATION

id091700606000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(4)  Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-G 2.5].) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

(5)  Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION.)

3.  Partially peel back the floor covering.

4.  Remove the fastener.

ac8wzw00001588

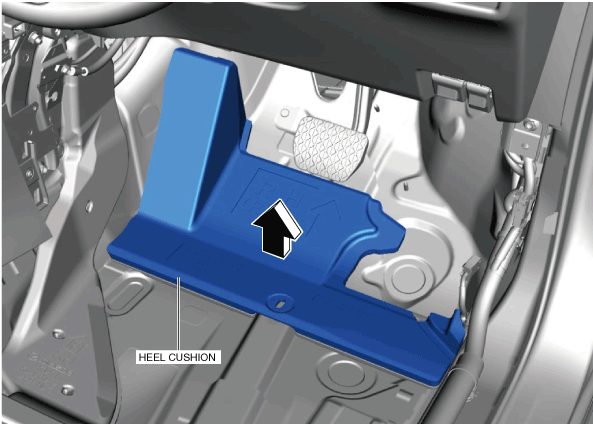

5.  Move the heel cushion in the direction of the arrow shown in the figure and remove it.

ac8wzw00001589

6.  Install in the reverse order of removal.
