REAR CONSOLE PANEL REMOVAL/INSTALLATION

id091700613700

Without Cup Holder

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

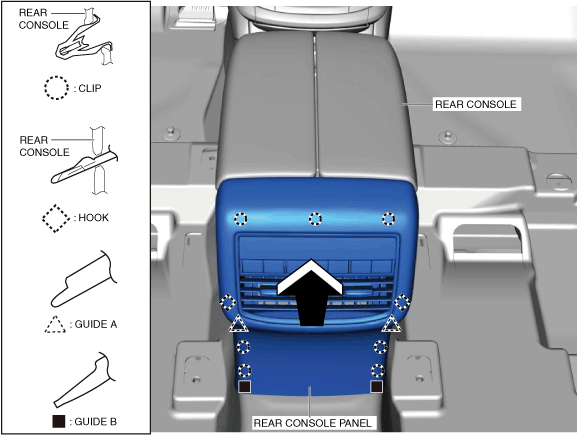

2.  Move the rear console panel in the direction of the arrow shown in the figure and remove it while detach the clips, hooks and guides A, B from the rear console.

ac9uuw00010948

3.  Disconnect the connector and remove the wiring harness clip.

ac9uuw00010949

4.  Remove the console panel.

5.  Install in the reverse order of removal.

With Cup Holder

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

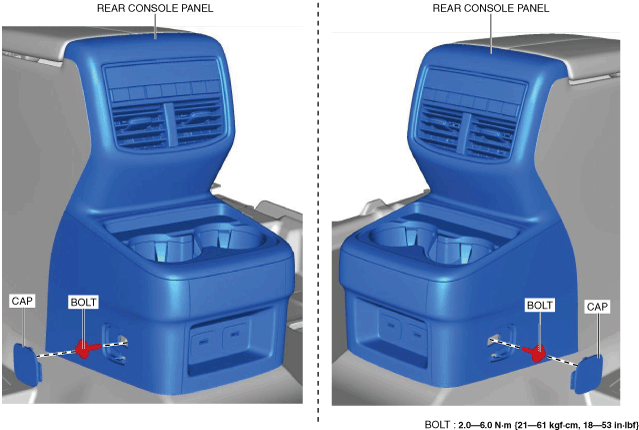

2.  Remove the caps.

ac9uuw00010950

3.  Remove the bolts.

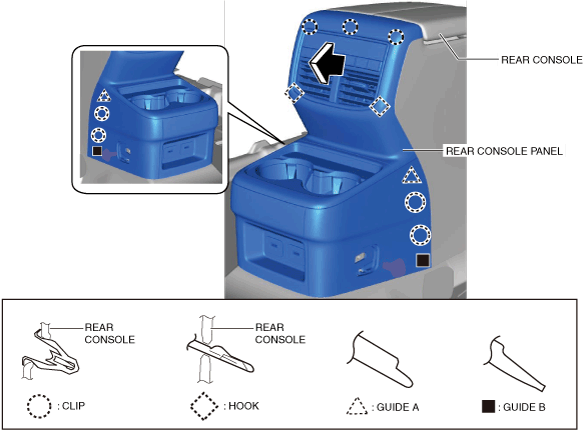

4.  Move the rear console panel in the direction of the arrow shown in the figure and remove it while detach the clips, hooks and guides A, B from the rear console.

ac9uuw00010951

5.  Disconnect the connector and remove the wiring harness clip.

ac9uuw00010952

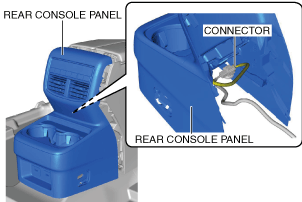

6.  Disconnect the connector.

ac9uuw00010953

7.  Install in the reverse order of removal.
