REAR CONSOLE-UP REMOVAL/INSTALLATION

id091700613900

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

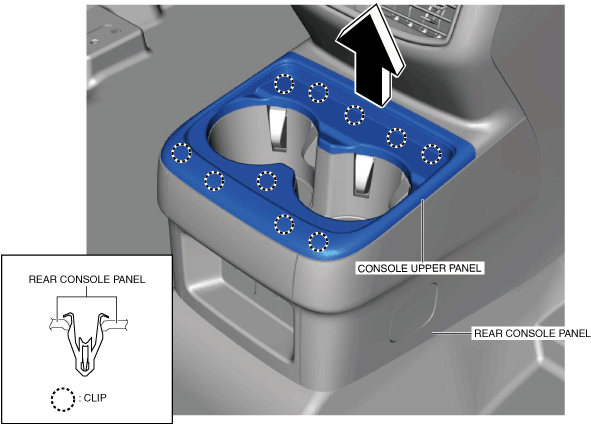

2.  Using a remover tool, remove the console upper panel in the direction of arrow shown in the figure while detaching the clips from the rear console panel.

ac9uuw00010956

3.  Move the rear console-up in the direction of the arrow shown in the figure and remove it while detaching the clips from the rear console panel.

ac9uuw00010957

4.  Disconnect the connectors.

ac9uuw00010958

5.  Remove the rear console-up.

6.  Install in the reverse order of removal.

Note

•  When replacing the rear console-up, remove the USB power outlet. (See USB POWER OUTLET REMOVAL/INSTALLATION.)
