B-PILLAR LOWER TRIM REMOVAL/INSTALLATION

id091700802000

1.  Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2.  Remove the rear scuff plate. (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

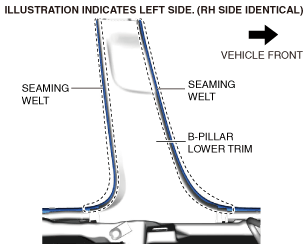

3.  Partially peel back the seaming welts.

ac8wzw00001701

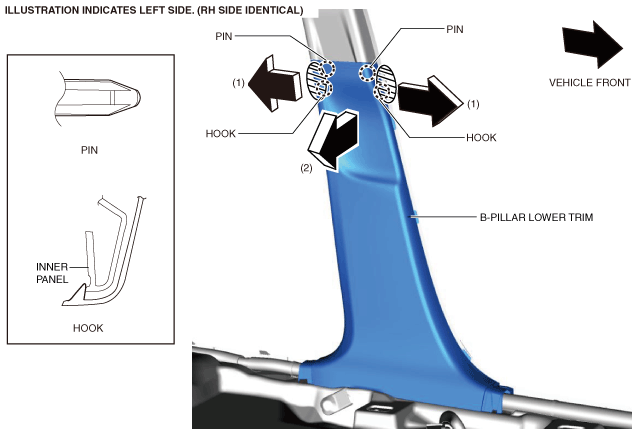

4.  Hold the shaded areas shown in the figure, and while pulling the B-pillar lower trim in the directions of arrows (1) and (2), remove the hooks and pins.

ac8wzw00002249

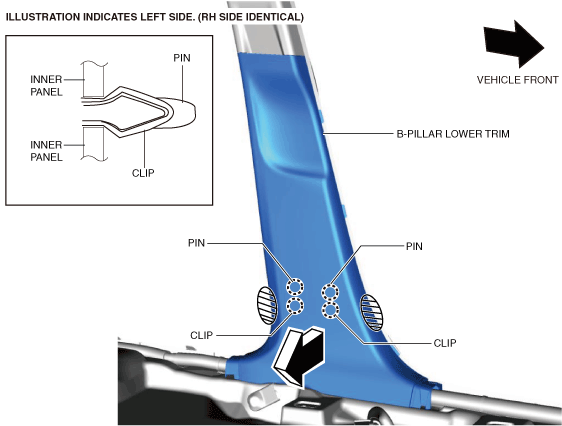

5.  Hold the shaded area shown in the figure, remove the B-pillar lower trim by pulling it in the direction of the arrow to detach the clips and pins.

ac8wzw00002250

6.  Install in the reverse order of removal.
