TRUNK END TRIM REMOVAL/INSTALLATION

id091700803400

1.  Remove the following parts:

(1)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(2)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(3)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

2.  Partially peel back the weatherstrip.

ac8wzw00001749

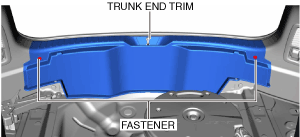

3.  Remove the fasteners.

ac8wzw00001750

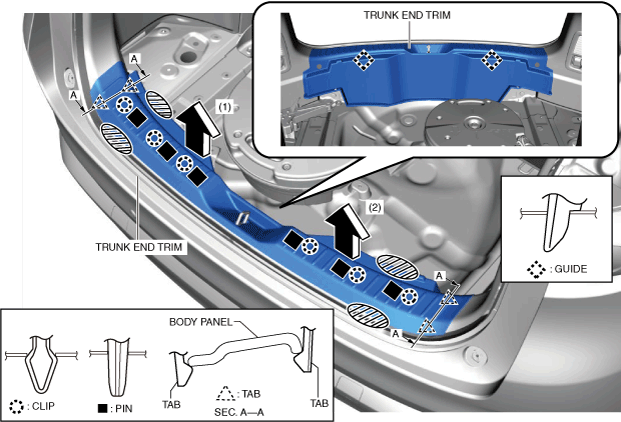

4.  Hold the shaded area shown in the figure, move the trunk end trim in the order of arrows (1) and (2), and then remove it while detaching the clips, pins, guides, and tabs.

ac8wzw00001751

5.  Install in the reverse order of removal.
