FRONT DOOR TRIM DISASSEMBLY/ASSEMBLY

id091700804200

Driver-side

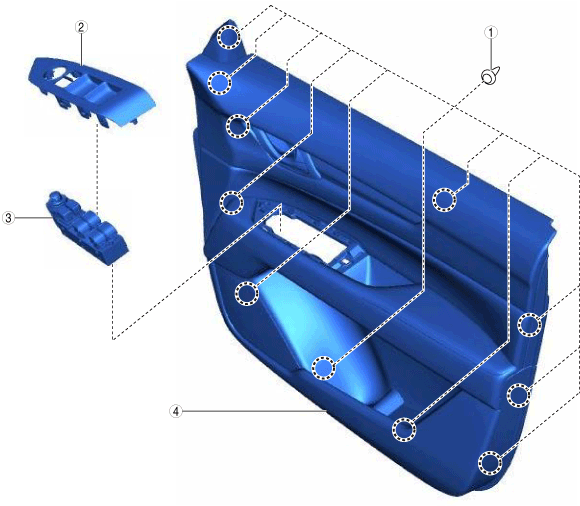

1.  Disassemble in the order shown in the figure.

ac8wzw00001762

1	Fastener
2	Power window main switch cover (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
3	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.)
4	Front door trim

2.  Assemble in the reverse order of disassembly.

Passenger-side

1.  Disassemble in the order shown in the figure.

ac5jjw00010553

1	Fastener
2	Power window subswitch cover (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
3	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.)
4	Front door trim

2.  Assemble in the reverse order of disassembly.
