DASHBOARD UNDER COVER REMOVAL/INSTALLATION

id091700807200

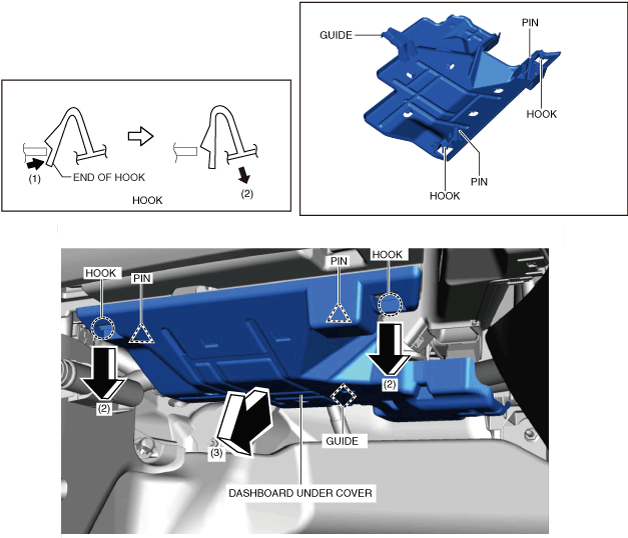

1.  With the hook end pressed in the direction of arrow (1) shown in the figure, pull the dashboard under cover in the direction of arrows (2) and detach the hooks and pins.

ac8wzw00001789

2.  Pull the dashboard under cover in the direction of arrow (3) shown in the figure and remove it while releasing the guide.

Caution

•  When detaching the hooks and pins, if the dashboard under cover is pulled downward forcefully, the guide may become damaged. Be careful not to damage the guide when detaching the hooks and pins.

3.  Disconnect the foot light connector. (with foot light)

Note

•  When replacing the dashboard under cover, remove the foot light. (See FOOT LIGHT REMOVAL/INSTALLATION.)

4.  Install in the reverse order of removal.
