FOOT LIGHT REMOVAL/INSTALLATION

id091800809200

Front

Driver-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

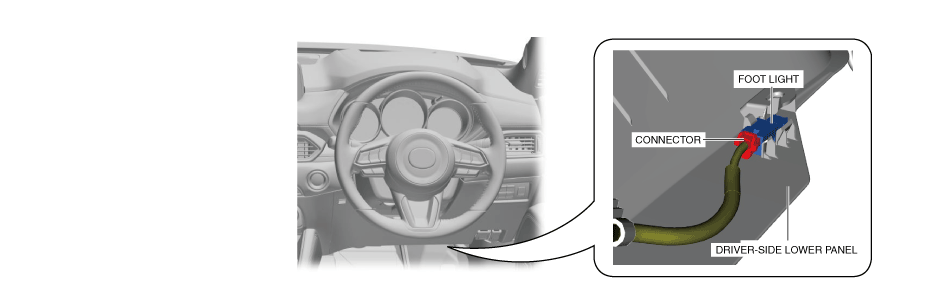

2.  Disconnect the connector.

ac8wzw00003277

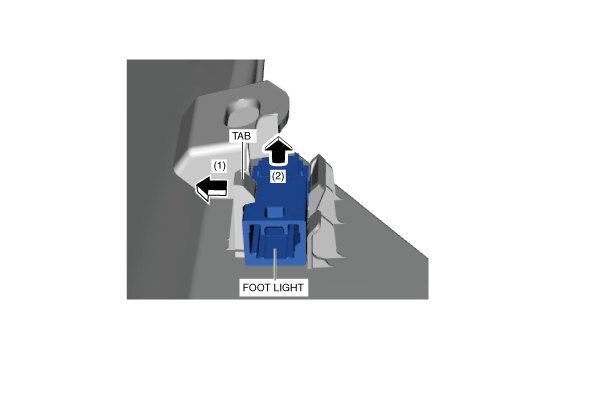

3.  Remove the foot light (2) while pressing the tab (1) in the direction of the arrow shown in the figure.

ac8wzw00003278

4.  Install in the reverse order of removal.

Passenger-side

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the dashboard under cover. (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION.)

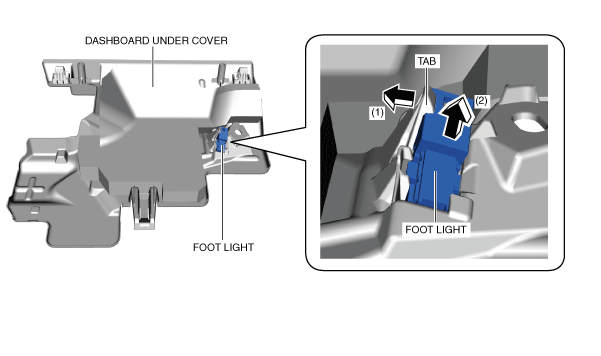

3.  Remove the foot light (2) while pressing the tab (1) in the direction of the arrow shown in the figure.

ac8wzw00003279

4.  Install in the reverse order of removal.

Rear

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front seat. (See FRONT SEAT REMOVAL/INSTALLATION.)

3.  Remove the screw.

am6xuw00011323

4.  Remove the cover.

5.  Disconnect the connector.

6.  While pressing hooks in the direction of arrow shown in the figure and remove the foot light from the cover.

am6xuw00011739

7.  Install in the reverse order of removal.
