SPEAKER GRILLE REMOVAL/INSTALLATION

id091700960700

Center Speaker Grille

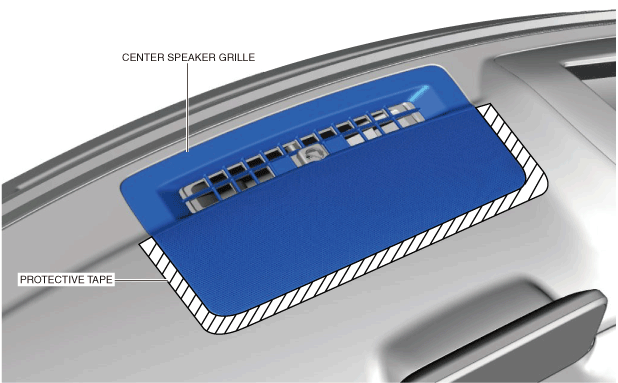

1.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8wzw00001800

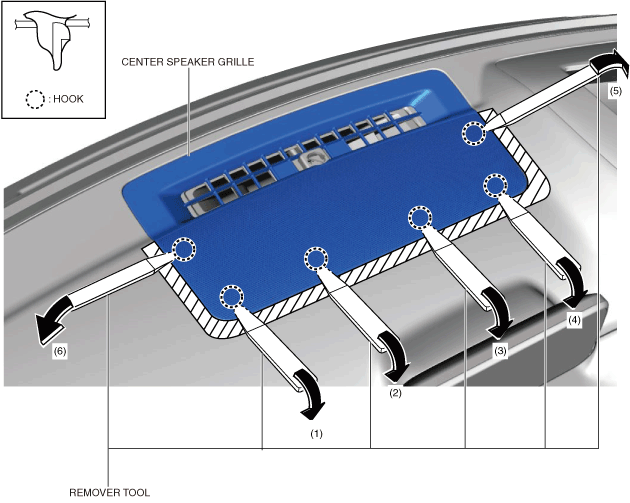

2.  Insert a remover tool into the positions shown in the figure, move it in the order of arrows (1), (2), (3), (4), (5), and (6), and then detach the hooks.

ac8wzw00001801

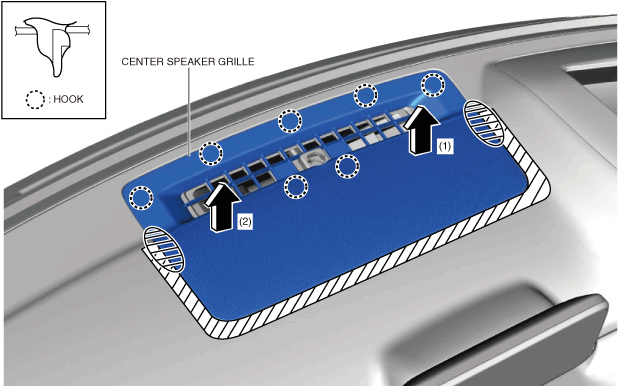

3.  Hold the shaded areas shown in the figure, move the center speaker grille in the order of arrows (1) and (2), and then remove it while detaching the hooks.

ac8wzw00001802

4.  Install in the reverse order of removal.

Tweeter Grille

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Remove the tweeter. (See TWEETER REMOVAL/INSTALLATION.)

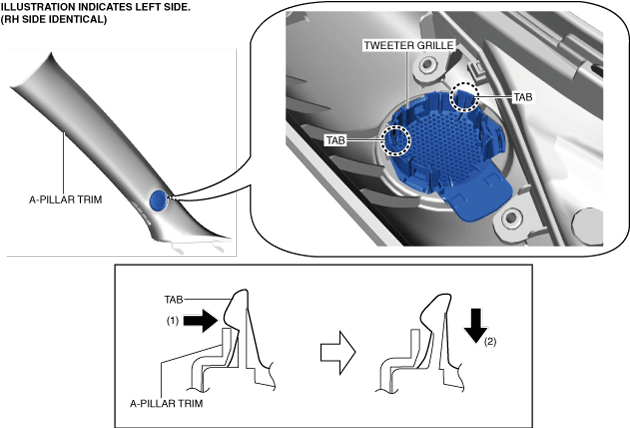

4.  Move the tabs in the order of arrows (1) and (2) shown in the figure and remove the tweeter grille.

ac8wzw00001803

5.  Install in the reverse order of removal.

Rear Speaker Grille (with Bose®)

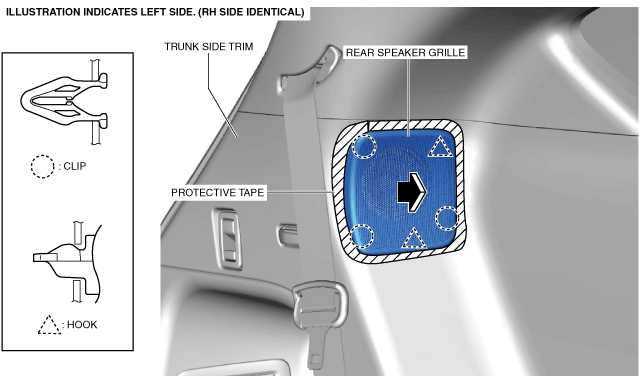

1.  To prevent scratches or damage, apply protective tape to the position shown in the figure.

ac8wzw00001804

2.  Using a remover tool, remove the rear speaker grille in the direction of the arrow shown in the figure while detaching the clips and hooks.

3.  Install in the reverse order of removal.
