CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION


id091800801700

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

Caution
•  If a remover tool is inserted into the gap between the cargo compartment light and the liftgate lower trim, the liftgate lower trim could interfere with the remover tool resulting in damage to the liftgate lower trim. When removing the cargo compartment light from the liftgate lower trim, perform the procedure after applying protective tape to the liftgate lower trim.

2.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

ac8wzw00002361

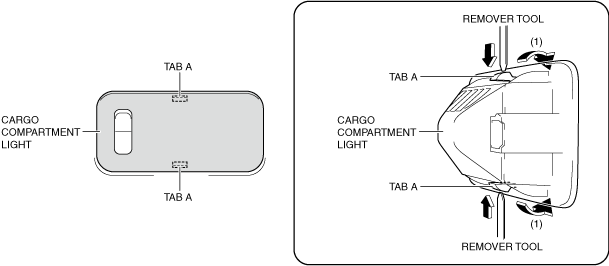

3.  While pressing tabs A of the cargo compartment light using a remover tool, pull the cargo compartment light in the directions of arrows (1) shown in the figure and detach tabs A of the cargo compartment light from the liftgate lower trim.

ac8wzw00002362

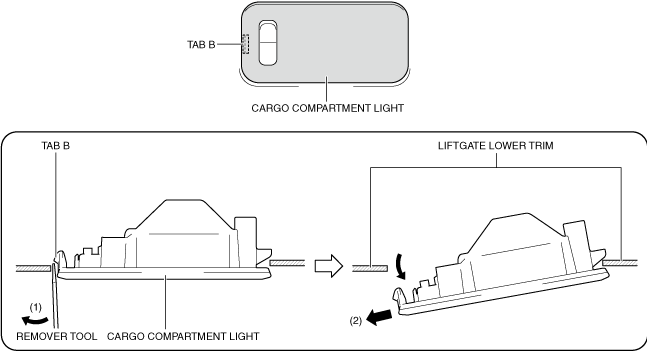

4.  Move the remover tool in the direction of arrow (1) shown in the figure and pull out tab B of the cargo compartment light from the liftgate lower trim.

ac8wzw00002363

5.  Move the cargo compartment light in the direction of arrow (2) shown in the figure and pull out the cargo compartment light from the liftgate lower trim.

6.  Disconnect the connector and remove the cargo compartment light.

ac8wzw00002364

7.  Install in the reverse order of removal.
