FRONT MAP LIGHT REMOVAL/INSTALLATION

id091800808000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Open the sunglasses holder.

ac8wzw00002384

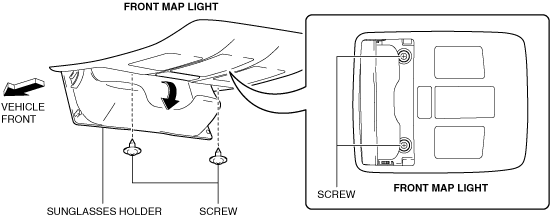

3.  Remove the screws.

Caution

•  Be careful not to pull the connector out strongly when removing the front map light. Otherwise, the contact surface of the wiring harness secured to the headliner will come off and the wiring harness could be pulled out. If the front map light is installed with the wiring harness pulled out, the wiring harness could get caught between the headliner and bracket resulting in open or short circuit in the wiring harness.

4.  Pull the front map light in the direction of arrow (1) shown in the figure and pull out the front map light clip from the bracket.

ac8wzw00002385

5.  Move the front map light in the direction of arrow (2) shown in the figure and pull out the front map light hook from the headliner.

Caution

•  When removing the front map light from the headliner, hold the front map light on the lens side with a hand. Otherwise, it may fall off and be damaged.

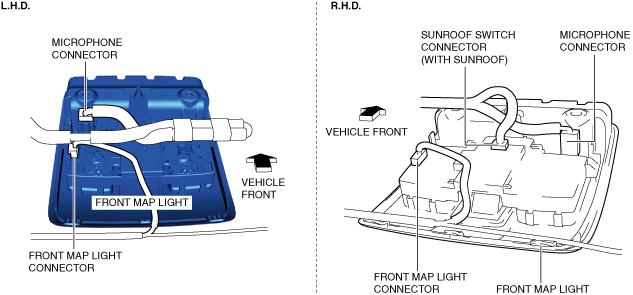

6.  Disconnect the connector and remove the front map light.

ac8wzw00002386

7.  Install in the reverse order of removal.
