VANITY MIRROR ILLUMINATION INSPECTION

id091800808500

Bulb Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)

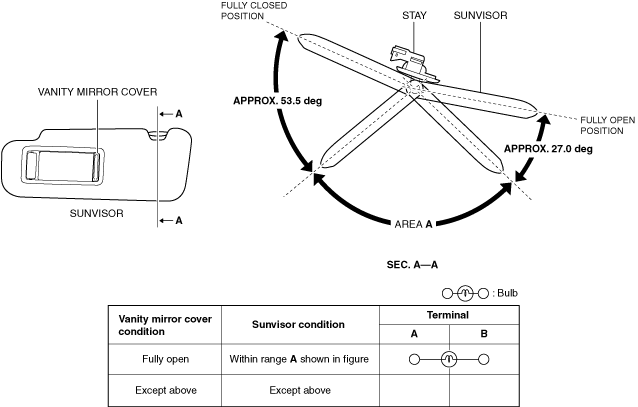

3.  Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.

ac5uuw00005578

ac9uuw00008333

LED Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)

3.  Verify that the continuity between the vanity mirror illumination terminals is as indicated in the table.

ac8wzw00003295

am6zzw00017454

•  If not as indicated in the table, replace the sunvisor. (See SUNVISOR REMOVAL/INSTALLATION.)
