BACK-UP LIGHT BULB REMOVAL/INSTALLATION

id091800810000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

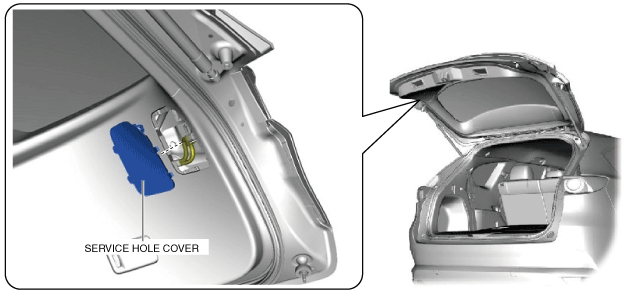

2.  Remove the service hole cover.

ac8wzw00002393

3.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

ac8wzw00002394

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

4.  Remove the back-up light bulb.

ac8wzw00002395

5.  Install in the reverse order of removal.
