SIDE TURN LIGHT INSPECTION

id091800811600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Outer mirror glass (See OUTER MIRROR GLASS REMOVAL.)(See OUTER MIRROR GLASS INSTALLATION.)

(2)  Upper outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

(3)  Lower outer mirror garnish (See OUTER MIRROR GARNISH REMOVAL/INSTALLATION.)

(4)  Side turn light (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)

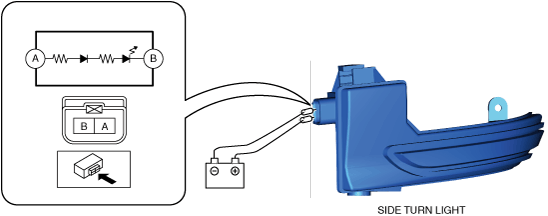

3.  Apply battery voltage to side turn light terminal A, and connect terminal B to ground.

ac5wzw00011007

4.  Verify that the LED illuminates.

•  If the LED illuminates, go to the next step.

•  If the LED does not illuminate, replace the side turn light. (See SIDE TURN LIGHT REMOVAL/INSTALLATION.)

5.  Remove the front door trim. (See FRONT DOOR TRIM REMOVAL/INSTALLATION.)

6.  Remove the front door speaker. (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION.)

7.  Remove the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)

8.  Verify that the continuity between side turn light terminal and power outer mirror terminal is as indicated in the table.

ac8wzw00001229

am6zzw00008097

•  If not as indicated in the table, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION.)
