REAR TURN LIGHT BULB REMOVAL/INSTALLATION

id091800813800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

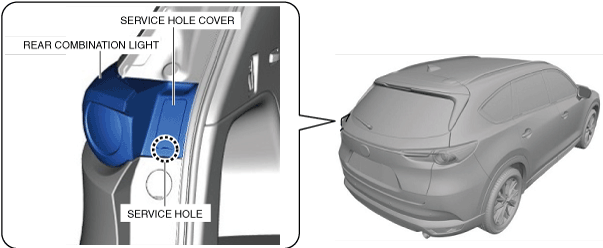

2.  Insert the remover tool into the service hole at the position shown in the figure.

ac8wzw00002412

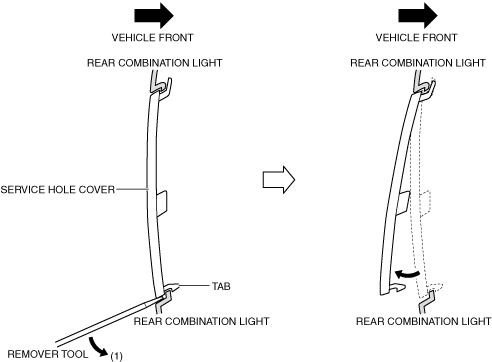

3.  Move the remover tool in the direction of arrow (1) shown in the figure and pull the tab of the service hole cover out of the rear combination light.

ac8wzw00002413

4.  Remove the service hole cover.

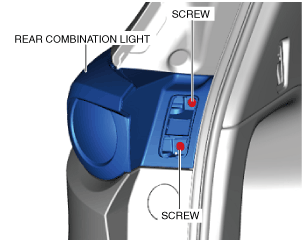

5.  Remove the screws. (See Screw Installation Note.)

ac8wzw00002414

Caution

•  When removing the rear combination light from the body, perform the procedure after applying protective tape to the body. Otherwise, the body could interfere with the rear combination light and cause scratching or damage to the body.

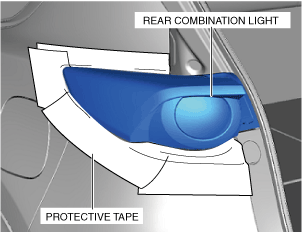

6.  To prevent scratches or damage, apply protective tape to the positions shown in the figure.

ac8wzw00002415

7.  Pull the rear combination light in the direction of arrow (1) shown in the figure and pull out the rear combination light from the body.

ac8wzw00002416

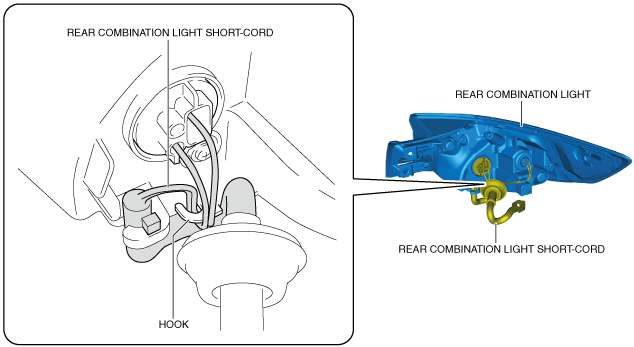

8.  Remove the rear combination light short cord from the hook.

ac8wzw00002417

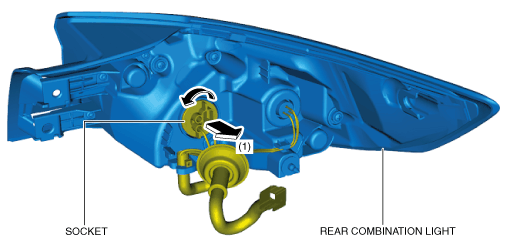

9.  Turn the socket counterclockwise and remove it in the direction of arrow (1) shown in the figure.

ac8wzw00002418

Caution

•  When temporarily installing the rear combination light, be aware of the following points. Otherwise, the rear combination light short cord may be damaged.

―  Remove the socket from the socket removal range shown in the figure.

―  Do not forcefully push the rear combination light to the vehicle side.

•  When temporarily installing the rear combination light, cover the rear combination light installation surface with a soft cloth. If the rear combination light contacts the rear bumper, the rear bumper may be damaged.

10.  Temporarily install the rear combination light with the socket pulled out of the top of the rear combination light.

ac8wzw00002419

Caution

•  If there is oil or dirt on the surface of the light bulb, excessive heat will build up and the life of the light bulb will be shortened. If the light bulb glass area is touched, wipe off any dirt using a soft cloth dampened with detergent diluted in water (approx. 5 %).

11.  Remove the rear turn light bulb.

12.  Install in the reverse order of removal.

Screw Installation Note

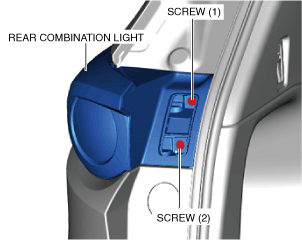

1.  Install the screws in the order of (1) and (2).

ac8wzw00002420
