WASHER TANK REMOVAL/INSTALLATION

id091900801700

Note

•  If the washer motor is removed with washer fluid in the washer tank, the washer fluid may leak out. When removing the washer motor from the washer tank, place a container under the washer tank to collect washer fluid, and perform the procedure.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

3.  Remove the bolt.

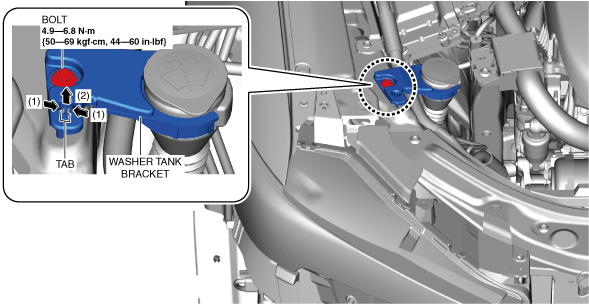

ac8wzw00000356

4.  While pressing the washer tank bracket tabs in the directions of arrows (1) shown in the figure, pull the washer tank bracket in the direction of arrow (2) and detach it from the body.

5.  Remove the cap.

ac8wzw00000357

6.  Move the washer funnel in the direction of arrow (2) shown in the figure while pressing it in the direction of arrows (1) shown in the figure, and remove the washer funnel from the washer tank bracket.

7.  Disconnect the connectors.

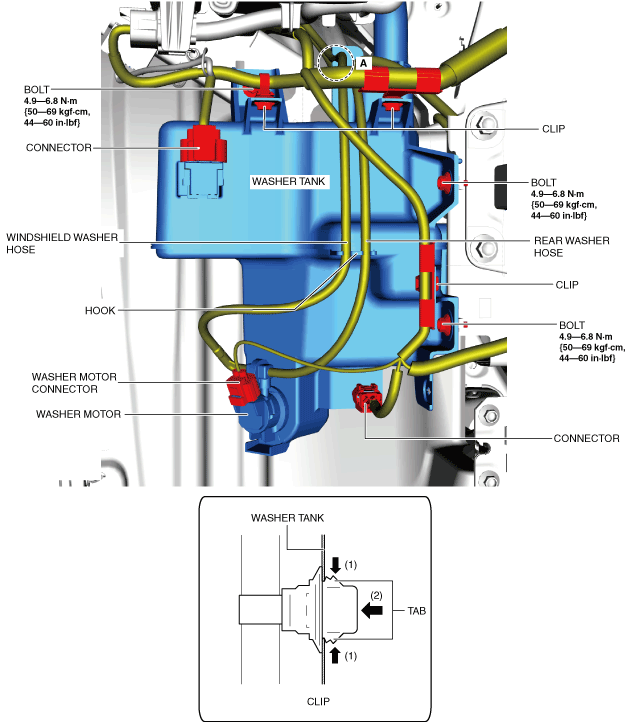

ac8wzw00000358

8.  While pressing the clip tabs in the direction of arrows (1) shown in the figure, press the clip in the direction of arrow (2) to detach the clip tabs from the washer tank.

9.  Disconnect the washer hoses from the washer motor.

10.  Pull out the washer hose from hook. (See Washer Hose Installation Note.)

11.  Pull out the washer hoses from part A.

12.  Remove the bolt.

13.  Pull out the washer tank hook from the vehicle.

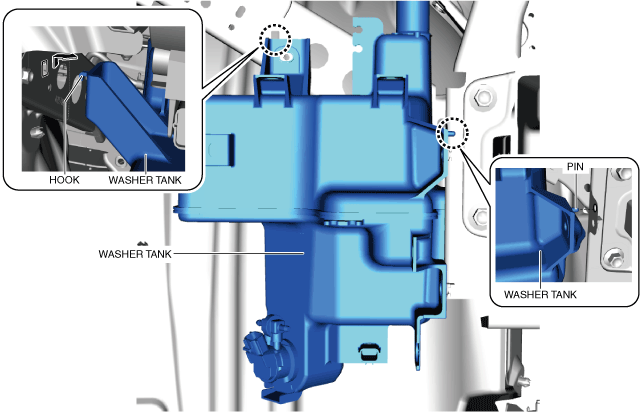

ac8wzw00000359

14.  Pull out the washer tank pin and remove the washer tank from the vehicle.

15.  Remove the washer motor. (See WASHER MOTOR REMOVAL/INSTALLATION.)

16.  Install in the reverse order of removal.

Washer Hose Installation Note

1.  When installing the washer hoses to the washer tank hooks, install them with the upper end of the marks aligned to the hooks.

ac8wzw00000360
