AUDIO AMPLIFIER REMOVAL/INSTALLATION


id092000801100

1.  Slide the driver-side seat rearward.

2.  Remove the bolts.

ac8wzw00001826

3.  Slide the driver-side seat forward.

4.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

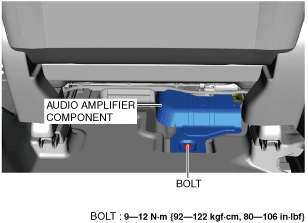

5.  Remove the bolts.

ac8wzw00002260

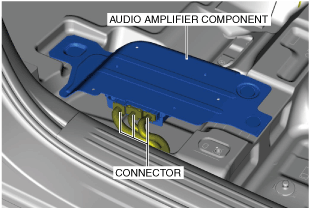

6.  Disconnect the connector.

ac8wzw00002261

7.  Remove the audio amplifier component.

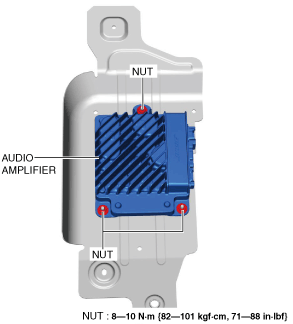

8.  Remove the nuts.

ac8wzw00002262

9.  Remove the audio amplifier.

10.  Install in the reverse order of removal.
