BASS-BOX REMOVAL/INSTALLATION

id092000815200

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the center trunk board. (See TRUNK BOARD REMOVAL/INSTALLATION.)

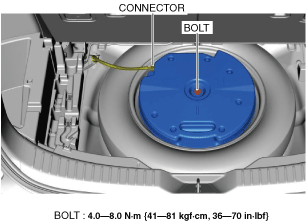

3.  Remove the bolt.

ac8wzw00001884

4.  Disconnect the connector.

5.  Remove the bass box.

6.  Install in the reverse order of removal.
