AudioPilot^® MICROPHONE REMOVAL/INSTALLATION

id092000866400

Note

•  AudioPilot^® is a registered trademark of Bose^® Corporation.

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the connector.

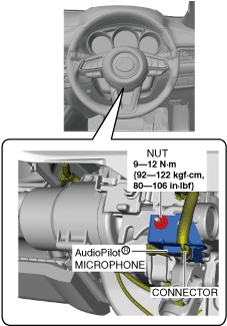

ac8wzw00001893

3.  Remove the nut.

4.  Remove the AudioPilot^® microphone.

5.  Install in the reverse order of removal.
