FUEL GAUGE SENDER UNIT INSPECTION [2WD]

id0922000121b2

SKYACTIV-G 2.5

Note

•  For the fuel gauge sender unit removal/installation, refer to the fuel pump removal/installation because the fuel gauge sender unit is integrated with the fuel pump. (See FUEL PUMP UNIT REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)

1.  Verify that the resistance at fuel gauge sender unit terminals D and C is as follows according to the height of the float.

Resistance when float is in the highest position

•  18.5—21.5 ohms

Resistance when float is in the lowest position

•  197—203 ohms

ac5wzw00010255

•  If not as indicated in the table, replace the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].)

SKYACTIV-D 2.2

1.  Perform the "Fuel Line Safety Procedure" referring to the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION [SKYACTIV-D 2.2].)

2.  If the fuel gauge level indicates 3/4 or more, refer to the "FUEL DRAINING PROCEDURE" and drain the fuel. (See FUEL DRAINING PROCEDURE [SKYACTIV-D 2.2].)

3.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

4.  Remove the second-row seat (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

5.  Remove the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].)

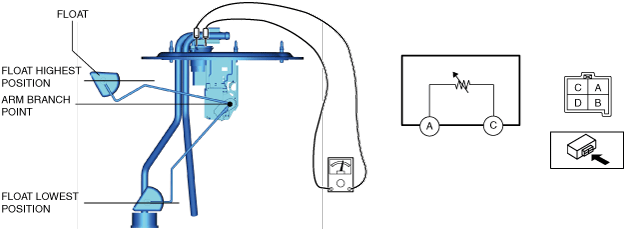

6.  Verify that the resistance at fuel gauge sender unit terminals C and A is as follows according to the height of the float.

Resistance when float is in the highest position

•  18.5—21.5 ohms

Resistance when float is in the lowest position

•  197—203 ohms

ac8wzw00001422

•  If not as indicated in the table, replace the fuel gauge sender unit. (See FUEL GAUGE SENDER UNIT REMOVAL/INSTALLATION [2WD].)
