FRONT PARKING SENSOR BUZZER REMOVAL/INSTALLATION

id092200030400

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Driver's front scuff plate

(2)  Driver's front side trim

(3)  Lower decoration panel

3.  Partially peel back the seaming welt.

ac8wzw00000561

4.  Remove the bolt.

ac8wzw00000562

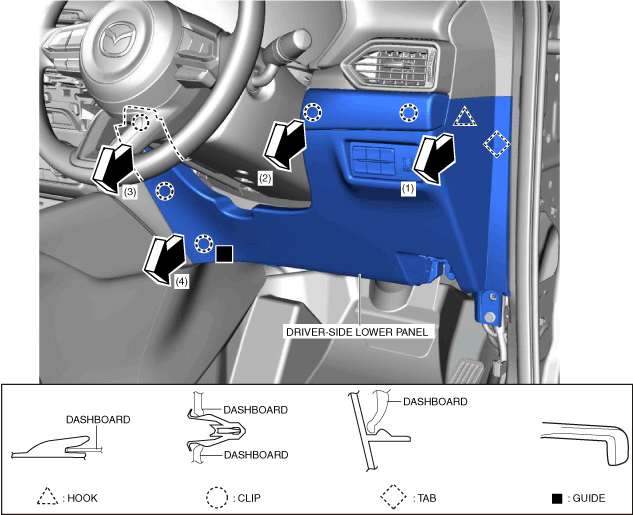

5.  Pull the driver's lower panel in the order of arrows (1), (2), (3), and (4) shown in the figure and remove the clips, hook, tab, and guide.

ac8wzw00000563

6.  Set the driver's lower panel aside to a position where the front parking sensor buzzer can be removed.

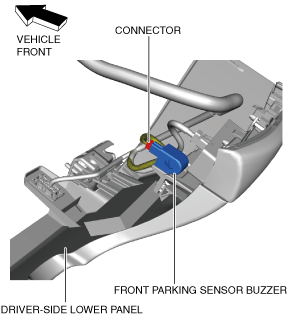

7.  Disconnect the connector.

ac8wzw00000564

8.  While pressing the front parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the front parking sensor buzzer in the direction of arrow (2) and remove it.

ac8wzw00000565

9.  Install in the reverse order of removal.
