REAR PARKING SENSOR BUZZER REMOVAL/INSTALLATION

id092200030500

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts.

(1)  Liftgate upper trim

(2)  Liftgate side trim

(3)  Liftgate recess

(4)  Cargo compartment light

(5)  Liftgate lower trim

3.  Disconnect the connector.

ac8wzw00000566

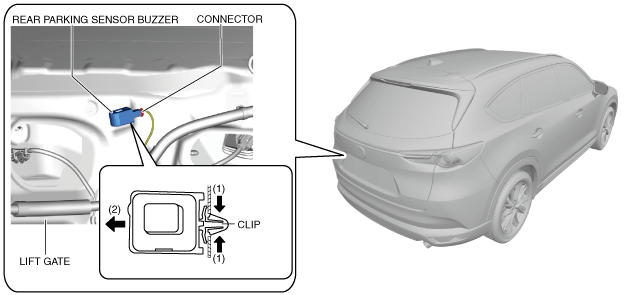

4.  While pressing the rear parking sensor buzzer tabs in the direction of arrows (1) shown in the figure, pull the rear parking sensor buzzer in the direction of arrow (2) and remove it.

5.  Install in the reverse order of removal.
