FRONT ULTRASONIC SENSOR REMOVAL/INSTALLATION

id092200030800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

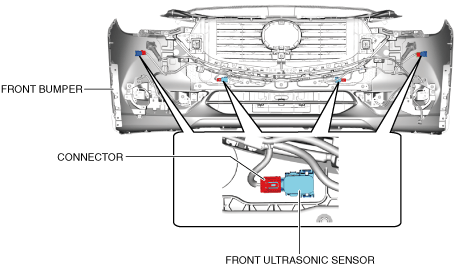

3.  Disconnect the connectors.

ac8wzw00000567

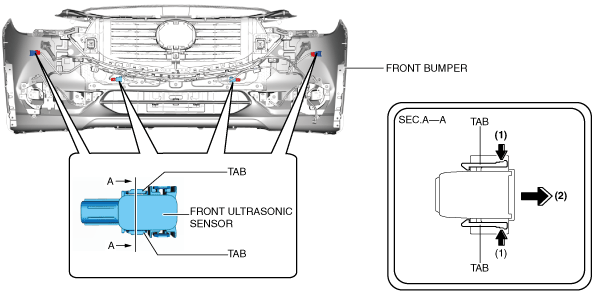

4.  While pressing the ultrasonic sensor tabs in the direction of arrows (1) shown in the figure, pull the front ultrasonic sensor in the direction of arrow (2) and remove it from the front bumper.

ac8jjw00000128

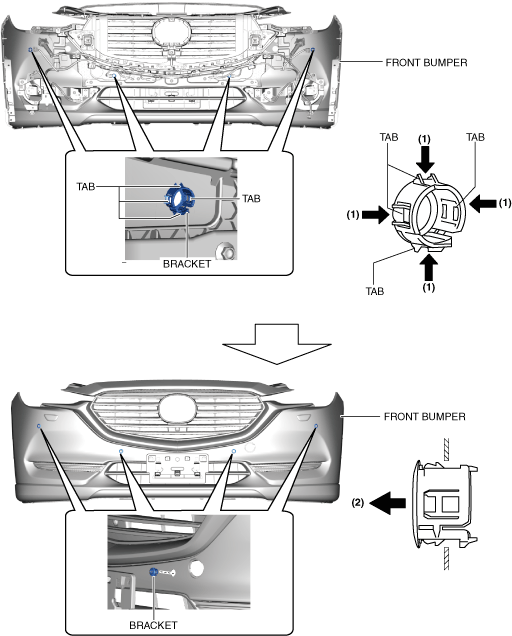

5.  While pressing the bracket tabs in the directions of arrows (1) shown in the figure, press the bracket in the direction of arrow (2) and detach the bracket tabs from the front bumper.

ac8wzw00000568

6.  Remove the brackets.

7.  Install in the reverse order of removal.
