PARKING ASSIST UNIT REMOVAL/INSTALLATION

id092200041800

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the glove compartment.

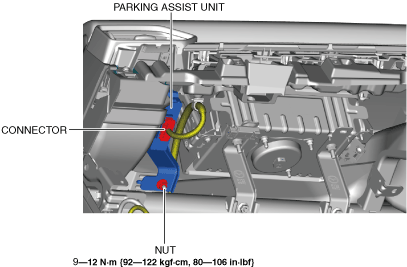

3.  Disconnect the connector.

ac8wzw00001242

4.  Remove the nut.

5.  Pull the parking assist unit in the direction of arrow (1) shown in the figure and remove it.

ac8wzw00001243

6.  Install in the reverse order of removal.
