PARKING SENSOR SWITCH INSPECTION

id092200042700

Note

• The parking sensor switch is integrated with the cluster switch.

• To replace the parking sensor switch, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

10 Pin Type

Continuity inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3. Verify that the continuity between the cluster switch terminals is as indicated in the table.

ac5wzw00010268

ac5wzw00012923

• If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED illumination inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3. Apply battery voltage to cluster switch terminal H, and connect terminal G to ground.

4. Verify that the LED is turned on.

ac5wzw00010270

• If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

14 Pin Type

Continuity inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

(1) Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2) Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

3. Verify that the continuity between the cluster switch terminals is as indicated in the table.

ac8wzw00001450

ac8wzw00001451

• If not as indicated in the table, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED illumination inspection

1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2. Remove the following parts:

1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

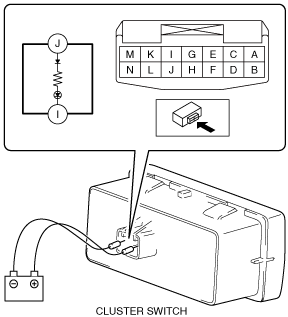

3. Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.

4. Verify that the LED is turned on.

ac8wzw00003327

― If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
