i-stop CONTROL

id111100000100

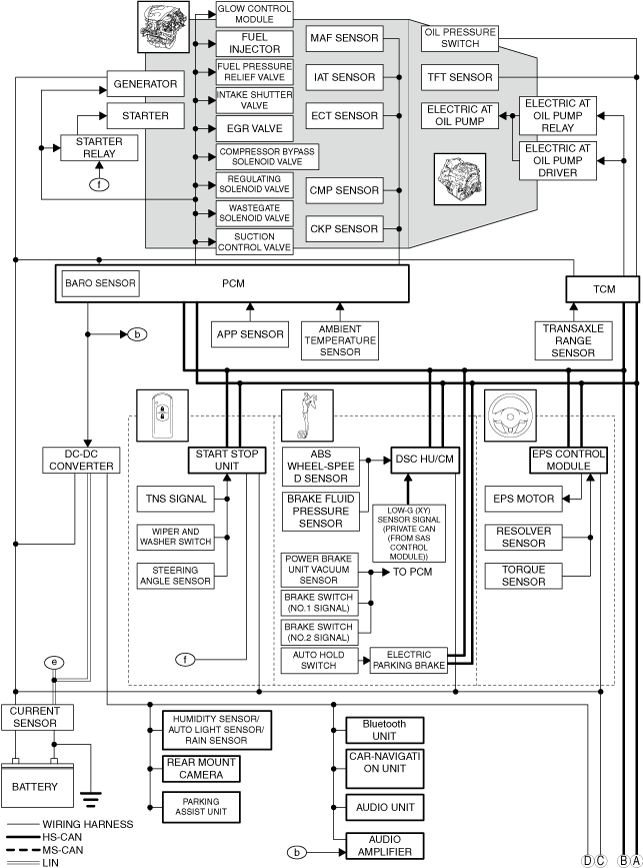

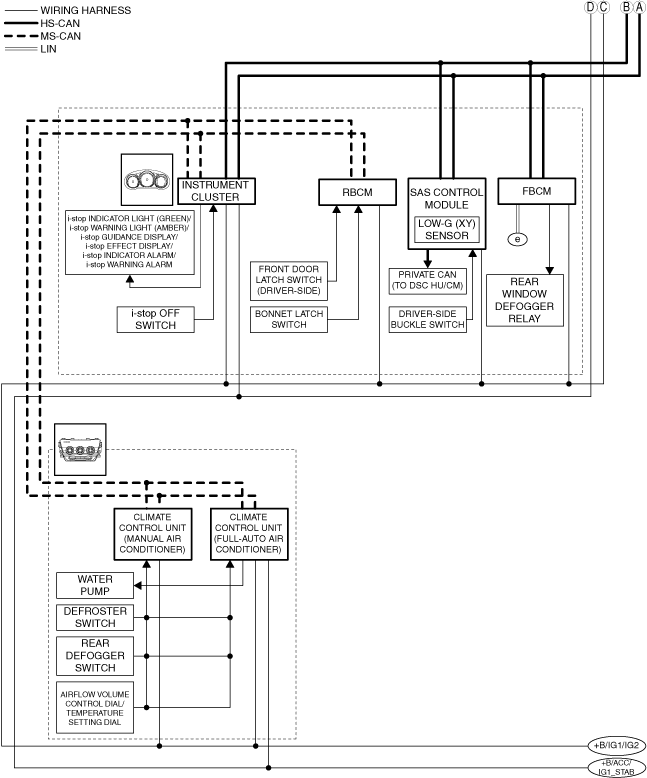

i-stop Control Outline

ac8wzn00000571
ac5wzn00004694

i-stop Control Modules

•  i-stop is controlled by the following modules. For details on each of the controls, refer to the control content for each module.

Module name

Reference
PCM
SKYACTIV-D 2.2
(See i-stop CONTROL [SKYACTIV-D 2.2].)
(See DC-DC CONVERTER CONTROL [SKYACTIV-D 2.2].)
(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-D 2.2].)
(See i-stop WARNING LIGHT (AMBER) [SKYACTIV-D 2.2].)
(See i-stop WARNING ALARM [SKYACTIV-D 2.2].)
DSC HU/CM
(See HILL LAUNCH ASSIST (HLA).)
TCM
(See ELECTRIC AT OIL PUMP [GW6A-EL, GW6AX-EL].)
Start stop unit
(See START STOP UNIT.)
EPS control module
(See ELECTRIC POWER STEERING (EPS) CONTROL MODULE.)
Climate control unit
(See CLIMATE CONTROL UNIT.)
SAS control module
(See SAS CONTROL MODULE [TWO-STEP DEPLOYMENT CONTROL SYSTEM].)
(See SAS CONTROL MODULE [STANDARD DEPLOYMENT CONTROL SYSTEM].)
Instrument cluster
(See INSTRUMENT CLUSTER.)
Front body control module (FBCM)
(See FRONT BODY CONTROL MODULE (FBCM).)
Rear body control module (RBCM)
(See REAR BODY CONTROL MODULE (RBCM).)
