LDWS SWITCH INSPECTION

id152000002700

Note

•  The LDWS switch is integrated with the cluster switch.

•  To replace the LDWS switch, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

10 Pin Type

Resistance inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

3.  Verify that the resistance between cluster switch terminals B and C is as indicated in the table.

•  Resistance with LDWS switch pressed and held

―  187.61—191.39 ohms

•  Resistance with any switches not pressed

―  1,139.99—1,163.01 ohms

ac5wzw00009897

•  If not within the specification, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED illumination inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

3.  Apply battery positive voltage to cluster switch terminal J, and connect terminal I to ground.

ac5wzw00009898

4.  Verify that the LED is turned on.

•  If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

14 Pin Type

Resistance inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

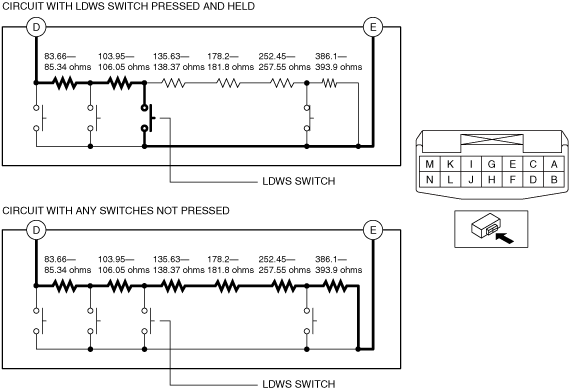

3.  Verify that the resistance between cluster switch terminals D and E is as indicated in the table.

•  Resistance with LDWS switch pressed and held

―  187.61—191.39 ohms

•  Resistance with any switches not pressed

―  1,139.99—1,163.01 ohms

ac8wzw00001528

•  If not within the specification, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

LED illumination inspection

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)

(3)  Cluster switch (See CLUSTER SWITCH REMOVAL/INSTALLATION.)

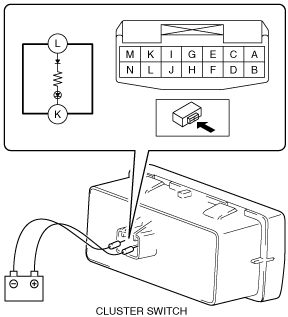

3.  Apply battery positive voltage to cluster switch terminal L, and connect terminal K to ground.

ac8wzw00001529

4.  Verify that the LED is turned on.

•  If the LED does not turn on, replace the cluster switch. (See CLUSTER SWITCH REMOVAL/INSTALLATION.)
