REAR STABILIZER INSTALLATION [4WD]

id0214008042a2

1.  After installing the rear stabilizer bracket, verify that the positions of the rear stabilizer bracket and the rear stabilizer bushing are within the range shown in the figure.

ac9uuw00008003

H1: 5 mm {0.2 in} or less
H2: 5 mm {0.2 in} or less

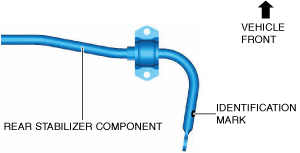

2.  Point the identification mark to the right side of the vehicle and install the rear stabilizer component.

ac8wzw00001987

3.  Temporarily tighten nuts A and B shown in the figure.

ac8wzw00001988

4.  Tighten nut A.

Tightening torque
21—26 N·m {2.2—2.6 kgf·m, 16—19 ft·lbf}

5.  Tighten nut B.

Tightening torque
21—26 N·m {2.2—2.6 kgf·m, 16—19 ft·lbf}

6.  Tighten nut A.

Tightening torque
21—26 N·m {2.2—2.6 kgf·m, 16—19 ft·lbf}

7.  Lift up the rear crossmember component using a jack and install the rear crossmember installation nuts.

ac8wzw00001989

Tightening torque
91—111 N·m {9.3—11 kgf·m, 68—81 ft·lbf}

8.  Install the following parts. (See Suspension Links Installation Note.)

(1)  Rear coil spring (See REAR COIL SPRING REMOVAL/INSTALLATION.)

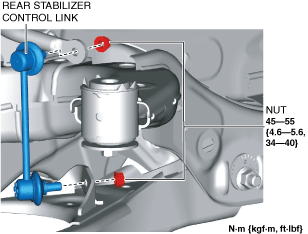

(2)  Rear stabilizer control link.
ac8wzw00001990
(3)  Propeller shaft (See PROPELLER SHAFT REMOVAL/INSTALLATION.)
(4)  Middle pipe (See EXHAUST SYSTEM REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)

9.  Install the following parts.

(1)  Strut bar
ac8wzw00004165
(2)  Tunnel member
(3)  Brace bar

10.  Install the insulator.

ac8wzw00001991

11.  Install the fasteners in the order shown in the figure.

12.  Install the following parts. (See FLOOR UNDER COVER REMOVAL/INSTALLATION.)

(1)  Floor under cover No.1
(2)  Floor under cover No.2

13.  Assemble the rear ABS wheel-speed sensor and the electric parking brake motor gear unit connector.

ac8wzw00001992

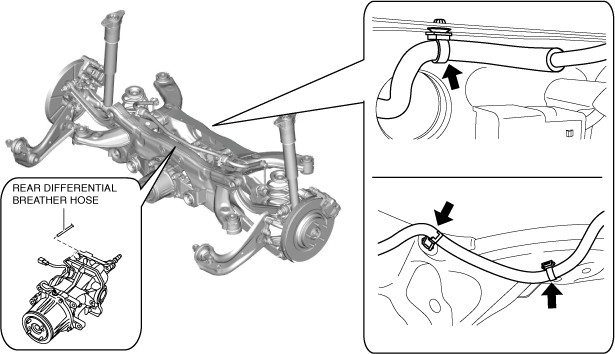

14.  Assemble the rear differential breather hose.

ac8wzw00001993

15.  Assemble the wiring harness clips and wiring harness connector as shown in the figure.

ac8wzw00001994

16.  Install the wheel and tire. (See WHEEL AND TIRE REMOVAL/INSTALLATION.)

17.  Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

18.  Inspect the wheel alignment and adjust if necessary. (See REAR WHEEL ALIGNMENT.)


Suspension Links Installation Note

1.  When installing the joint sections with rubber bushings, perform the following steps.

(1)  Temporarily tighten the bolts with the vehicle lifted up.
(2)  Lower the vehicle to the ground and tighten the bolts to the specified torque.
