HVAC BASIC SYSTEM LOCATION INDEX

id071100801700

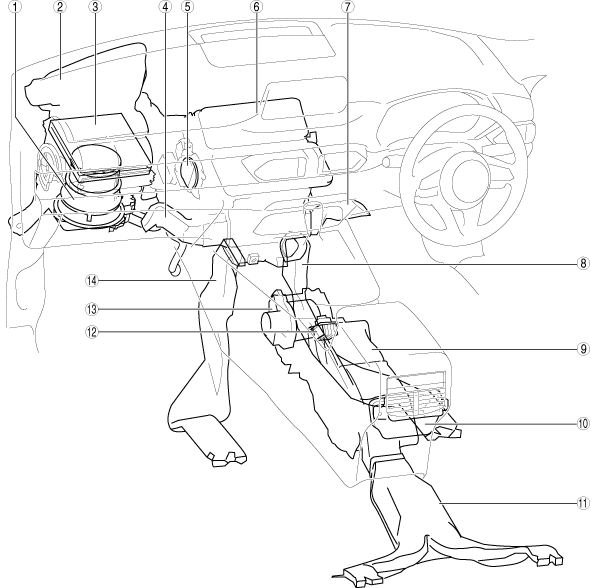

Structural View


Inside cabin

ac8wzw00000144

1
Front blower motor
(See FRONT BLOWER MOTOR REMOVAL/INSTALLATION.)
(See FRONT BLOWER MOTOR INSPECTION.)
2
Blower unit
(See BLOWER UNIT REMOVAL/INSTALLATION.)
(See BLOWER UNIT DISASSEMBLY/ASSEMBLY.)
3
Air filter
(See AIR FILTER REMOVAL/INSTALLATION.)
(See AIR FILTER INSPECTION.)
4
Passenger-side front heat duct
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
5
Airflow mode main link
(See AIRFLOW MODE MAIN LINK REMOVAL.)
(See AIRFLOW MODE MAIN LINK INSTALLATION.)
6
Front A/C unit
(See FRONT A/C UNIT REMOVAL/INSTALLATION.)
(See FRONT A/C UNIT DISASSEMBLY/ASSEMBLY.)
7
Driver-side front heat duct
(See FRONT HEAT DUCT REMOVAL/INSTALLATION.)
8
Driver-side rear heat duct No.1
(See REAR HEAT DUCT No.1 REMOVAL/INSTALLATION.)
9
Rear A/C unit
(See REAR A/C UNIT REMOVAL/INSTALLATION.)
(See REAR A/C UNIT DISASSEMBLY/ASSEMBLY.)
10
Rear cooler duct
(See REAR COOLER DUCT REMOVAL/INSTALLATION.)
11
Rear heat duct No.2
(See REAR HEAT DUCT No.2 REMOVAL/INSTALLATION.)
12
Power MOS FET
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) REMOVAL/INSTALLATION.)
(See POWER METAL OXIDE SEMICONDUCTOR FIELD EFFECT TRANSISTOR (POWER MOS FET) INSPECTION.)
13
Rear blower motor
(See REAR BLOWER MOTOR REMOVAL/INSTALLATION.)
(See REAR BLOWER MOTOR INSPECTION.)
14
Passenger-side rear heat duct No.1
(See REAR HEAT DUCT No.1 REMOVAL/INSTALLATION.)

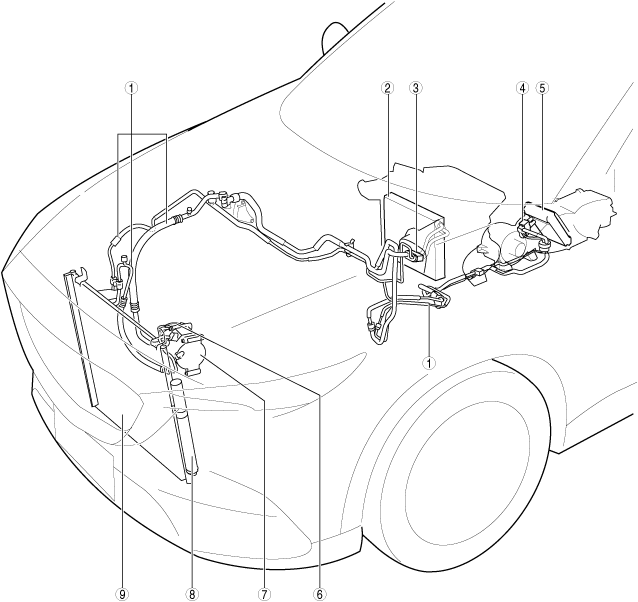

Refrigerant system

SKYACTIV-D 2.2

ac8wzw00000145

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2
Front evaporator
(See FRONT EVAPORATOR INSPECTION.)
3
Front expansion valve
(See FRONT EXPANSION VALVE REMOVAL/INSTALLATION.)
4
Rear expansion valve
(See REAR EXPANSION VALVE REMOVAL/INSTALLATION.)
5
Rear evaporator
(See REAR EVAPORATOR INSPECTION.)
6
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-D 2.2].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-D 2.2].)
(See MAGNETIC CLUTCH INSPECTION.)
7
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
8
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
9
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
(See CONDENSER INSPECTION [SKYACTIV-D 2.2].)

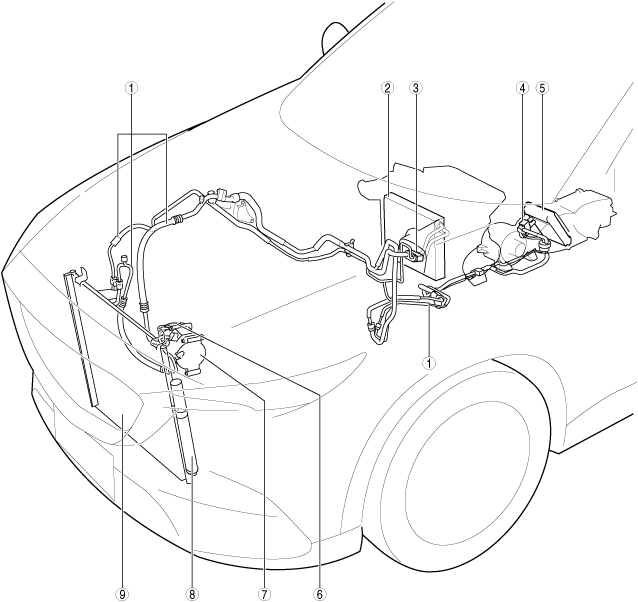

SKYACTIV-G 2.5

ac8wzw00003364

1
Refrigerant line
(See REFRIGERANT LINE REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
2
Front expansion valve
(See FRONT EXPANSION VALVE REMOVAL/INSTALLATION.)
3
Front evaporator
(See FRONT EVAPORATOR INSPECTION.)
4
Rear expansion valve
(See REAR EXPANSION VALVE REMOVAL/INSTALLATION.)
5
Rear evaporator
(See REAR EVAPORATOR INSPECTION.)
6
Magnetic clutch
(See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G 2.5].)
(See MAGNETIC CLUTCH INSPECTION.)
7
A/C compressor
(See A/C COMPRESSOR REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
8
Receiver/drier
(See RECEIVER/DRIER REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
9
Condenser
(See CONDENSER REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
(See CONDENSER INSPECTION [SKYACTIV-G 2.5].)

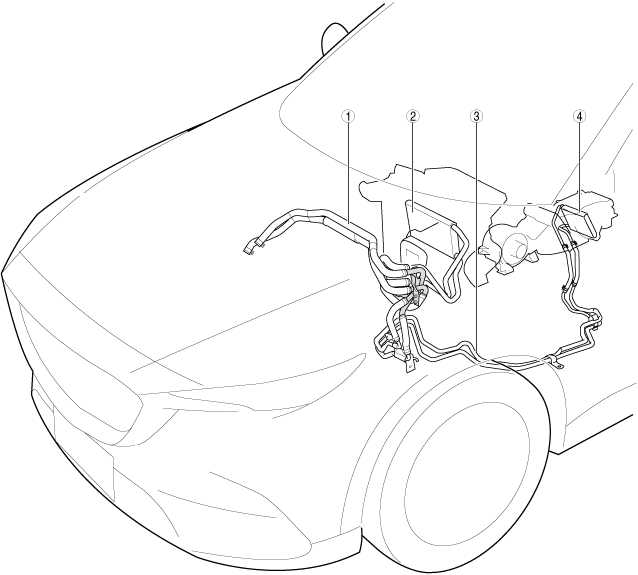

Heater system

SKYACTIV-D 2.2

ac8wzw00000146

1
Heater pipe and heater hose (front)
(See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
2
Front heater core
(See FRONT HEATER CORE INSPECTION.)
3
Heater pipe and heater hose (rear)
(See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION [SKYACTIV-D 2.2].)
4
Rear heater core
(See REAR HEATER CORE INSPECTION.)

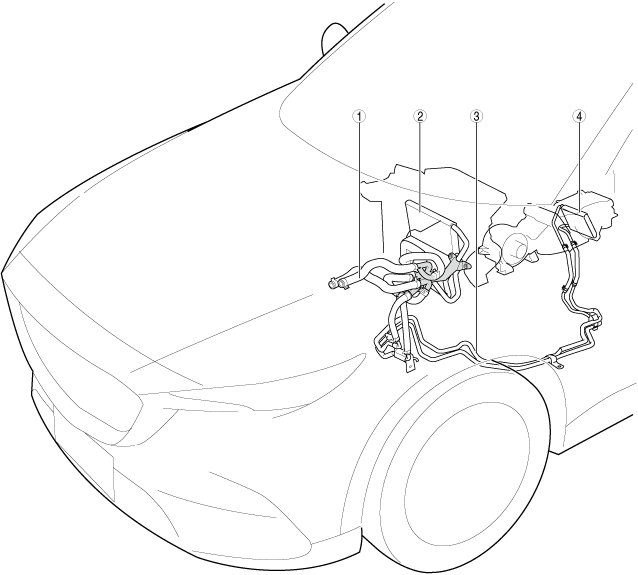

SKYACTIV-G 2.5

ac8wzw00003365

1
Heater pipe and heater hose (front)
(See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
2
Front heater core
(See FRONT HEATER CORE INSPECTION.)
3
Heater pipe and heater hose (rear)
(See HEATER PIPE AND HOSE COMPONENT REMOVAL/INSTALLATION [SKYACTIV-G 2.5].)
4
Rear heater core
(See REAR HEATER CORE INSPECTION.)
