REAR AIRFLOW MODE ACTUATOR REMOVAL/INSTALLATION

id074000804800

1.  Slide the front seat (RH) forward.

2.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

3.  Remove the following parts:

(1)  Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

(2)  Selector lever knob (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

(3)  Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION.)

(4)  Front console box (without wireless charger (Qi)) (See FRONT CONSOLE BOX REMOVAL/INSTALLATION.)

(5)  Wireless charger (Qi) (with wireless charger (Qi)) (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION.)

(6)  Side wall (See SIDE WALL REMOVAL/INSTALLATION.)

(7)  Rear console panel (See REAR CONSOLE PANEL REMOVAL/INSTALLATION.)

(8)  Rear cooler duct (See REAR COOLER DUCT REMOVAL/INSTALLATION.)

(9)  Rear console (See REAR CONSOLE REMOVAL/INSTALLATION.)

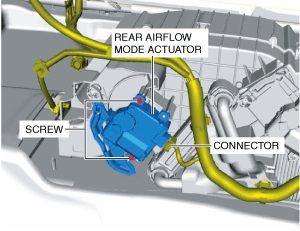

4.  Disconnect the connector.

ac9wzw00003705

5.  Remove the screws.

6.  Remove the rear airflow mode actuator.

7.  Install in the reverse order of removal.
