DTC B1B88:13 [REAR POWER SEAT CONTROL MODULE (RH)]

id0902t3571300

Description

Walk-in actuator (RH) circuit/slide motor (RH) circuit malfunction

Detection condition

•  Rear power seat control module (RH) detects an open circuit or short to ground in the walk-in actuator (RH) circuit/slide motor (RH).

Fail-safe

•  Inhibits the rear power slide function from being driven.

•  Inhibits the rear power walk-in operation slide function from being driven.

•  Inhibits the rear power walk-in return function from being driven.

Possible cause

•  Walk-in actuator (RH) connector or terminal malfunction

•  Slide motor (RH) connector or terminal malfunction

•  Rear power seat control module (RH) connector or terminal malfunction

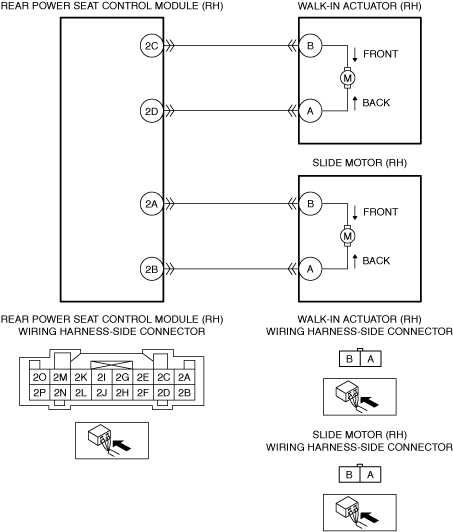

•  Short to ground in wiring harness between the following terminals:

―  Rear power seat control module (RH) terminal 2D—Walk-in actuator (RH) terminal A

―  Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B

―  Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A

•  Open circuit in wiring harness between the following terminals:

―  Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B

―  Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A

•  Slide motor (RH) malfunction

•  Rear power seat control module (RH) malfunction

Description	Walk-in actuator (RH) circuit/slide motor (RH) circuit malfunction
Detection condition	• Rear power seat control module (RH) detects an open circuit or short to ground in the walk-in actuator (RH) circuit/slide motor (RH).
Fail-safe	• Inhibits the rear power slide function from being driven. • Inhibits the rear power walk-in operation slide function from being driven. • Inhibits the rear power walk-in return function from being driven.
Possible cause	• Walk-in actuator (RH) connector or terminal malfunction • Slide motor (RH) connector or terminal malfunction • Rear power seat control module (RH) connector or terminal malfunction • Short to ground in wiring harness between the following terminals: ― Rear power seat control module (RH) terminal 2D—Walk-in actuator (RH) terminal A ― Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B ― Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A • Open circuit in wiring harness between the following terminals: ― Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B ― Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A • Slide motor (RH) malfunction • Rear power seat control module (RH) malfunction

Diagnostic Procedure

Step

Inspection

Action

1

INSPECT WALK-IN ACTUATOR (RH) CONNECTOR CONDITION

•  Switch the ignition off.

•  Disconnect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Disconnect the walk-in actuator (RH) connector.

•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector and/or terminals, then go to Step 8.

2

INSPECT SLIDE MOTOR (RH) CONNECTOR CONDITION

•  Disconnect the slide motor (RH) connector.

•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector and/or terminals, then go to Step 8.

3

INSPECT REAR POWER SEAT CONTROL MODULE (RH) CONNECTOR CONDITION

•  Disconnect the rear power seat control module (RH) connector.

•  Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection.

•  Is the connector normal?

Yes

Go to the next step.

No

Repair or replace the connector and/or terminals, then go to Step 8.

4

INSPECT WALK-IN ACTUATOR (RH) CIRCUIT/SLIDE MOTOR (RH) CIRCUIT FOR SHORT TO GROUND

•  Verify that the slide motor (RH), walk-in actuator (RH), and rear power seat control module (RH) connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side) and body ground:

―  Rear power seat control module (RH) terminal 2D

―  Rear power seat control module (RH) terminal 2A

―  Rear power seat control module (RH) terminal 2B

•  Is there continuity?

Yes

Refer to the wiring diagram and verify whether or not there is a common connector between the following circuits:

•  Rear power seat control module (RH) terminal 2D—Walk-in actuator (RH) terminal A

•  Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B

•  Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A

If there is a common connector:

•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground.

•  Repair or replace the malfunctioning part.

If there is no common connector:

•  Repair or replace the wiring harness which has a short to ground.

Go to Step 8.

No

Go to the next step.

5

INSPECT SLIDE MOTOR (RH) CIRCUIT FOR OPEN CIRCUIT

•  Verify that the slide motor (RH) and rear power seat control module (RH) connectors are disconnected.

•  Inspect for continuity between the following terminals (wiring harness-side):

―  Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B

―  Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A

•  Is there continuity?

Yes

Go to the next step.

No

Refer to the wiring diagram and verify whether or not there is a common connector between the following circuits:

•  Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B

•  Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A

If there is a common connector:

•  Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit.

•  Repair or replace the malfunctioning part.

If there is no common connector:

•  Repair or replace the wiring harness which has an open circuit.

Go to Step 8.

6

INSPECT SLIDE MOTOR (RH)

•  Inspect the slide motor (RH).
(See SLIDE MOTOR INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Replace the second-row seat (RH), then go to Step 8.

(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

7

INSPECT REAR POWER SEAT CONTROL MODULE (RH)

•  Inspect the rear power seat control module (RH).
(See REAR POWER SEAT CONTROL MODULE (RH) INSPECTION.)

•  Is the part normal?

Yes

Go to the next step.

No

Replace the second-row seat (RH), then go to the next step.

(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

8

VERIFY THAT REPAIRS HAVE BEEN COMPLETED

•  Reconnect all the disconnected connectors with the negative battery terminal disconnected.

•  Connect the negative battery terminal.
(See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

•  Clear the DTC for the rear power seat control module (RH) using the M-MDS.
(See CLEARING DTC [REAR POWER SEAT CONTROL MODULE (RH)].)

•  Retrieve the rear power seat control module (RH) DTCs using the M-MDS.
(See DTC INSPECTION [REAR POWER SEAT CONTROL MODULE (RH)].)

•  Is the same Pending DTC present?

Yes

Repeat the inspection from Step 1.

•  If the malfunction recurs, replace the second-row seat (RH).
(See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

Go to the next step.

No

Go to the next step.

9

VERIFY IF OTHER DTCs DISPLAYED

•  Are any other DTCs displayed?

Yes

Repair or replace the malfunctioning part according to the applicable DTC troubleshooting.

(See DTC TABLE [REAR POWER SEAT CONTROL MODULE (RH)].)

No

DTC troubleshooting completed.

Step	Inspection		Action
1	INSPECT WALK-IN ACTUATOR (RH) CONNECTOR CONDITION • Switch the ignition off. • Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Disconnect the walk-in actuator (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
1		No	Repair or replace the connector and/or terminals, then go to Step 8.
2	INSPECT SLIDE MOTOR (RH) CONNECTOR CONDITION • Disconnect the slide motor (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
2		No	Repair or replace the connector and/or terminals, then go to Step 8.
3	INSPECT REAR POWER SEAT CONTROL MODULE (RH) CONNECTOR CONDITION • Disconnect the rear power seat control module (RH) connector. • Inspect the connector engagement and connection condition and inspect the terminals for damage, deformation, corrosion, or disconnection. • Is the connector normal?	Yes	Go to the next step.
3		No	Repair or replace the connector and/or terminals, then go to Step 8.
4	INSPECT WALK-IN ACTUATOR (RH) CIRCUIT/SLIDE MOTOR (RH) CIRCUIT FOR SHORT TO GROUND • Verify that the slide motor (RH), walk-in actuator (RH), and rear power seat control module (RH) connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side) and body ground: ― Rear power seat control module (RH) terminal 2D ― Rear power seat control module (RH) terminal 2A ― Rear power seat control module (RH) terminal 2B • Is there continuity?	Yes	Refer to the wiring diagram and verify whether or not there is a common connector between the following circuits: • Rear power seat control module (RH) terminal 2D—Walk-in actuator (RH) terminal A • Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B • Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for a short to ground. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has a short to ground. Go to Step 8.
4		No	Go to the next step.
5	INSPECT SLIDE MOTOR (RH) CIRCUIT FOR OPEN CIRCUIT • Verify that the slide motor (RH) and rear power seat control module (RH) connectors are disconnected. • Inspect for continuity between the following terminals (wiring harness-side): ― Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B ― Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A • Is there continuity?	Yes	Go to the next step.
5		No	Refer to the wiring diagram and verify whether or not there is a common connector between the following circuits: • Rear power seat control module (RH) terminal 2A—Slide motor (RH) terminal B • Rear power seat control module (RH) terminal 2B—Slide motor (RH) terminal A If there is a common connector: • Determine the malfunctioning part by inspecting the common connector and the terminal for corrosion, damage, or pin disconnection, and the common wiring harness for an open circuit. • Repair or replace the malfunctioning part. If there is no common connector: • Repair or replace the wiring harness which has an open circuit. Go to Step 8.
6	INSPECT SLIDE MOTOR (RH) • Inspect the slide motor (RH). (See SLIDE MOTOR INSPECTION.) • Is the part normal?	Yes	Go to the next step.
6		No	Replace the second-row seat (RH), then go to Step 8. (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)
7	INSPECT REAR POWER SEAT CONTROL MODULE (RH) • Inspect the rear power seat control module (RH). (See REAR POWER SEAT CONTROL MODULE (RH) INSPECTION.) • Is the part normal?	Yes	Go to the next step.
7		No	Replace the second-row seat (RH), then go to the next step. (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)
8	VERIFY THAT REPAIRS HAVE BEEN COMPLETED • Reconnect all the disconnected connectors with the negative battery terminal disconnected. • Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.) • Clear the DTC for the rear power seat control module (RH) using the M-MDS. (See CLEARING DTC [REAR POWER SEAT CONTROL MODULE (RH)].) • Retrieve the rear power seat control module (RH) DTCs using the M-MDS. (See DTC INSPECTION [REAR POWER SEAT CONTROL MODULE (RH)].) • Is the same Pending DTC present?	Yes	Repeat the inspection from Step 1. • If the malfunction recurs, replace the second-row seat (RH). (See SECOND-ROW SEAT REMOVAL/INSTALLATION.) Go to the next step.
8		No	Go to the next step.
9	VERIFY IF OTHER DTCs DISPLAYED • Are any other DTCs displayed?	Yes	Repair or replace the malfunctioning part according to the applicable DTC troubleshooting. (See DTC TABLE [REAR POWER SEAT CONTROL MODULE (RH)].)
9		No	DTC troubleshooting completed.
