REAR BUMPER DISASSEMBLY/ASSEMBLY

id091000800800

Replacement part

1.  Remove the following parts:

(1)  Rear ultrasonic sensor short-cord (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

(2)  Rear ultrasonic sensor (See REAR ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION.)

2.  Disassemble in the order shown in the figure.

Warning

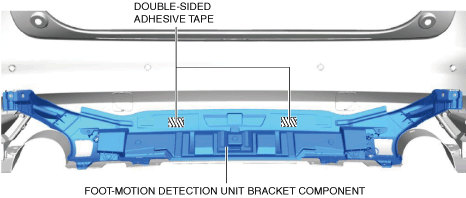

•  When removing foot-motion detection unit bracket component, peel off the double-sided adhesive tape at the position shown in the figure using a utility knife. Always wear gloves when using a utility knife. Using a utility knife with bare hands can cause injury.

ac8wzw00004857

ac8wzw00004858

1	Foot-motion detection unit bracket component (With foot-motion detection unit)
2	Rear reflector
3	Rear bumper guard (See Rivet Removal Note.)
4	Rear towing hook cover
5	Protector
6	Rear bumper face

3.  Assemble in the reverse order of disassembly.

Foot-motion Detection Unit Bracket Component Installation Note

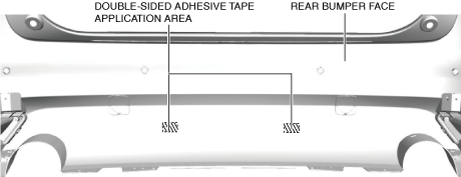

1.  Remove any grease or dirt on the double-sided adhesive tape application area shown in the figure.

ac8wzw00004859

2.  Peel off the backing of the double-sided adhesive tape and install the foot-motion detection unit bracket component.

ac8wzw00004857

3.  Press the double-sided adhesive tape areas on the foot-motion detection unit bracket component with a force of 50 N or more to adhere it to the rear bumper face.

Rivet Removal Note

1.  When removing the rivet, perform the following procedure:

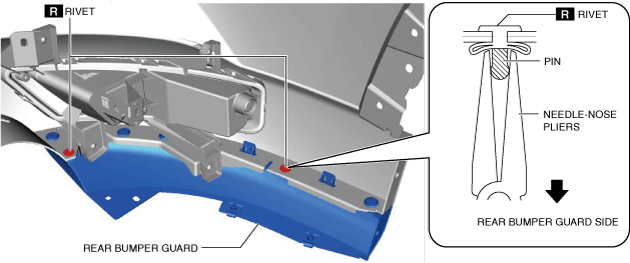

(1)  Secure the rivet pin from the rear bumper guard side using needle-nose pliers.

ac8wzw00000851

(2)  Use the following drill diameter.

Drill diameter:

4.9 mm {0.19 in}

Caution

•  If an inappropriate drill diameter is used, the rear bumper face may be damaged.

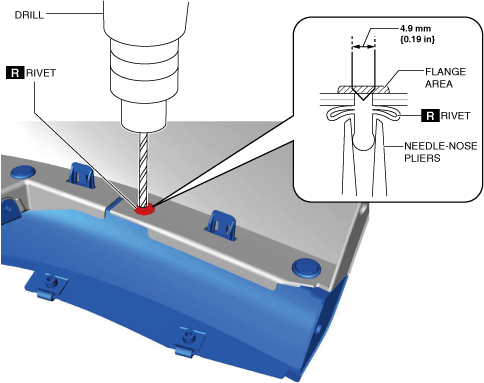

(3)  Remove the rivet flange using a drill and remove the rivet.

ac8wzw00000852

(4)  Remove any rivet shavings from the rear bumper face and rear bumper guard.
