LIFTGATE HINGE REMOVAL/INSTALLATION

id091100521300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the following parts:

(1)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(2)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(3)  Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)

(4)  Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)

(5)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(6)  Bass-box (with Bose^®) (See BASS-BOX REMOVAL/INSTALLATION.)

(7)  Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)

(8)  Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)

(9)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(10)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

(11)  C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION.)

(12)  Assist handle (rear) (See ASSIST HANDLE REMOVAL/INSTALLATION.)

(13)  Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION.)

(14)  Liftgate (See LIFTGATE REMOVAL/INSTALLATION.)

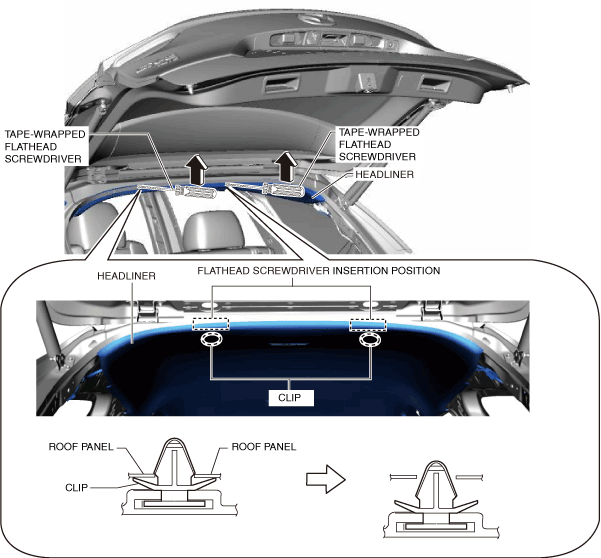

3.  Insert a tape-wrapped flathead screwdriver into the position shown in the figure, move it in the direction of the arrow, and then detach the clips.

ac8wzw00004132

4.  Partially peel back the headliner.

Caution

•  Peeling back the headliner without supporting it may cause the headliner to bend excessively and crease. Peel back the headliner while supporting it.

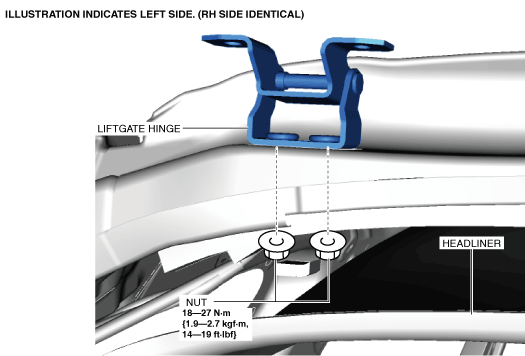

5.  Remove the nuts.

ac8wzw00003496

6.  Remove the liftgate hinge.

7.  Install in the reverse order of removal.

8.  Perform 360° view monitor system aiming. (with 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
