AUTO-DIMMING REARVIEW MIRROR REMOVAL/INSTALLATION

id091200016000

With Sensor Cover

Note

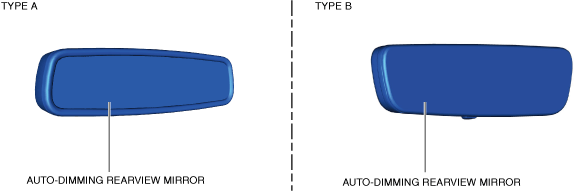

•  There are two types of auto-dimming rearview mirror. Verify the auto-dimming rearview mirror shape before performing the procedures.

ac8wzw00004846

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the sensor cover. (See SENSOR COVER REMOVAL/INSTALLATION.)

3.  Disconnect the auto-dimming rearview mirror connector.

ac8wzw00003300

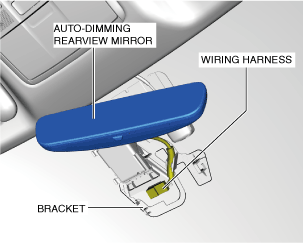

4.  Remove the wiring harness from the bracket. (type B)

ac8wzw00003301

5.  Loosen the screw.

ac8wzw00000948

6.  Move the auto-dimming rearview mirror in the direction of the arrow shown in the figure and remove it from the mirror base.

ac8wzw00000949

7.  Install in the reverse order of removal.

Without Sensor Cover

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Slide the cover in the direction of the arrow shown in the figure.

ac8wzw00004847

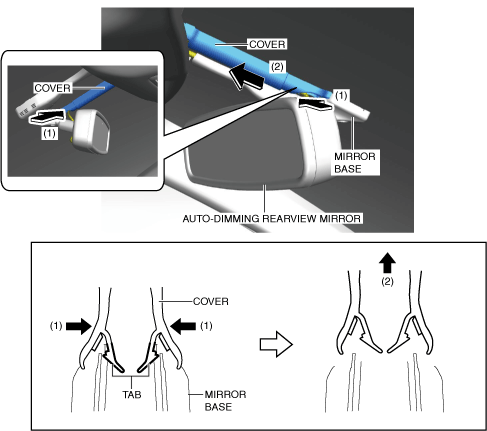

3.  Detach tabs while push the cover in the direction of the arrow (1) shown in the figure, then remove the cover in the direction of the arrow (2).

ac8wzw00004848

4.  Disconnect the auto-dimming rearview mirror connector.

ac8wzw00004849

5.  Loosen the screw.

ac8wzw00004850

6.  Remove the auto-dimming rearview mirror in the direction of the arrow shown in the figure.

ac8wzw00004851

7.  Install in the reverse order of removal.
