WALK-IN SWITCH INSPECTION

id091300961200

6:4 Split Adjustable-Type Bench Seat Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION)

3.  Disconnect the walk-in switch connector.

4.  Verify that the continuity is as indicated in the table.

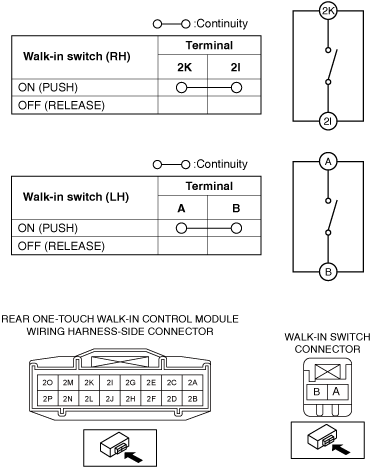

ac8wzw00004896

•  If not as indicated in the table, replace the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION)

Captain Seat Type

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION)

3.  Disconnect the walk-in switch connector.

4.  Verify that the continuity is as indicated in the table.

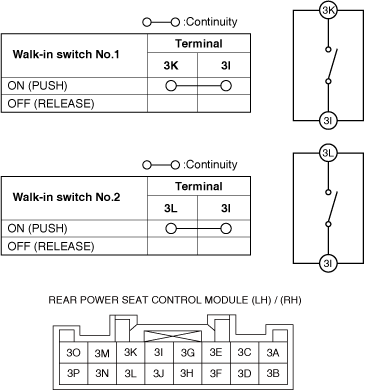

ac8wzw00004901

•  If not as indicated in the table, replace the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION)
