WALK-IN ACTUATOR INSPECTION

id091300961300

6:4 Split Adjustable-Type Bench Seat Type

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the walk-in actuator connector.

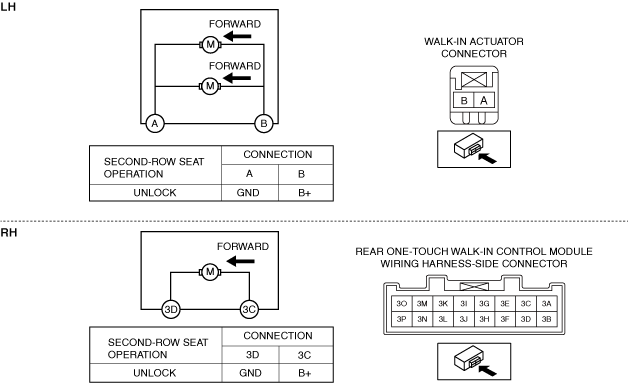

3.  Apply battery positive voltage and connect the ground to the walk-in actuator terminals as indicated in the table below and verify the operation condition.

ac8wzw00004897

•  If not as specified, replace the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)

Captain Seat Type

1.  Disconnect the negative battery terminal and wait for 1 min or more. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Disconnect the walk-in actuator connector.

3.  Apply battery positive voltage and connect the ground to the walk-in actuator terminals as indicated in the table below and verify the operation condition.

ac8wzw00004898

•  If not as specified, replace the second-row seat. (See SECOND-ROW SEAT REMOVAL/INSTALLATION.)
