FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION
id091400510800
1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
2. Remove the following parts:
- (1) Front seat (RH) (See FRONT SEAT REMOVAL/INSTALLATION.)
-
- (2) Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (3) Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION.)
-
- (4) Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)
-
- (5) B-pillar lower trim (RH) (See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION.)
-
- (6) Lower anchor installation bolts on the front seat belt (RH) (See FRONT SEAT BELT REMOVAL/INSTALLATION.)
-
- (7) Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)
-
- (8) Trunk covering (See TRUNK COVERING REMOVAL/INSTALLATION.)
-
- (9) Trunk side pocket (See TRUNK SIDE POCKET REMOVAL/INSTALLATION.)
-
- (10) Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)
-
- (11) Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION.)
-
- (12) Third-row seat cushion (See THIRD-ROW SEAT CUSHION REMOVAL/INSTALLATION.)
-
- (13) Third-row seat back component (See THIRD-ROW SEAT BACK COMPONENT REMOVAL/INSTALLATION.)
-
- (14) Trunk side trim (LH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (15) Trunk insulator (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)
-
- (16) Fuel-filler lid opener (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
- (17) Fuel-filler lid opener lever (See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
-
3. Remove the fuel-filler lid opener cable from clip A.

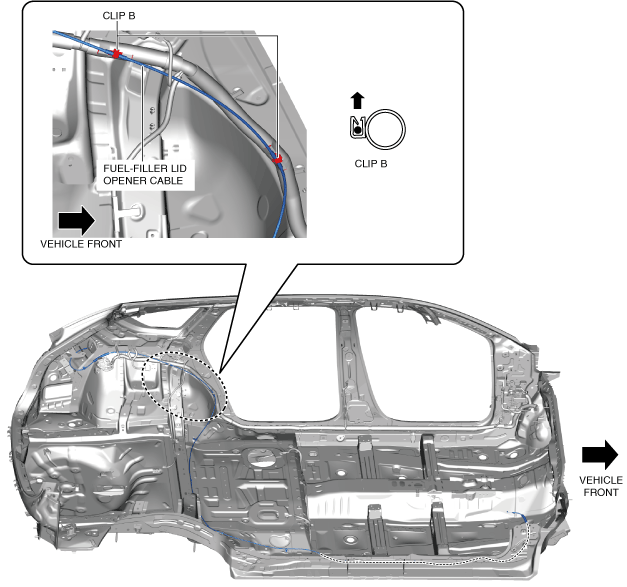

4. Remove the fuel-filler lid opener cable from clip B.

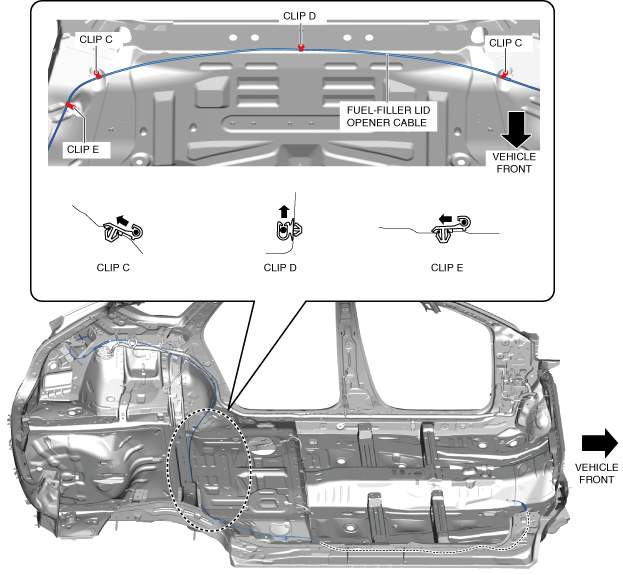

5. Peel back the floor mat and remove the fuel-filler lid opener cable from the clips C,D and E shown in the figure.

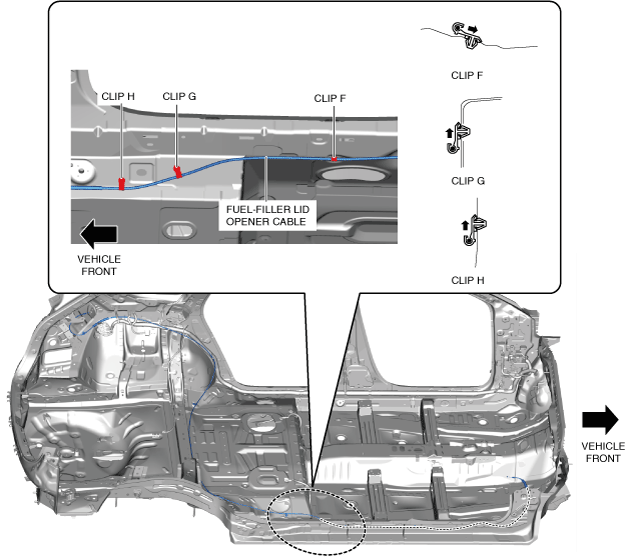

6. Peel back the floor mat and remove the fuel-filler lid opener cable from the clips F,G and H shown in the figure.

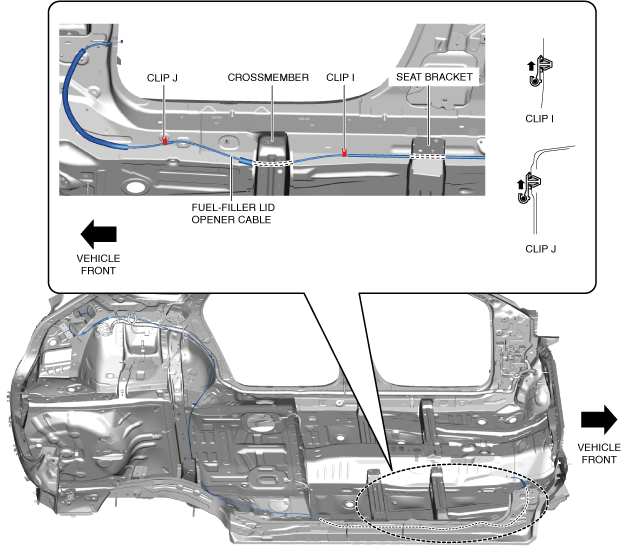

7. Peel back the floor mat and remove the fuel-filler lid opener cable from the clips I and J shown in the figure.
8. Pull the fuel-filler lid opener cable from the crossmember and the seat bracket.
9. Install in the reverse order of removal.
