WIRELESS CHARGER (Qi) DISABLING PROCEDURE

id092100050300

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the console side panel (rear console). (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

3.  Remove the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

4.  Remove the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

5.  Remove the wireless charger (Qi). (SeeWIRELESS CHARGER (Qi) REMOVAL/INSTALLATION.)

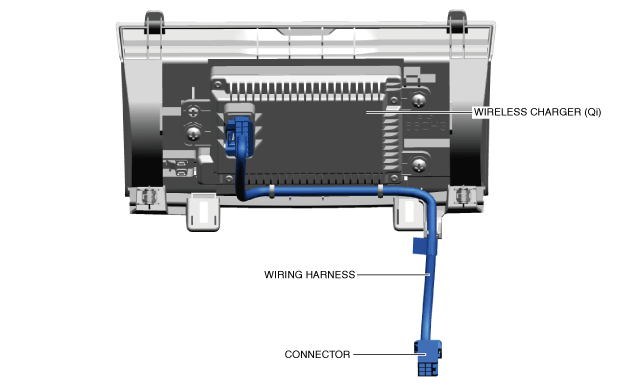

6.  Wrap the cushion tape around the connector.

Note

•  To prevent noise due to interference between the disconnected connector and the interior of the vehicle, wrap a cushion tape (length: 75 mm {2.9 in} x width: 35 mm {1.4 in}x thickness: 5 mm {0.2 in}) around the connector.

ac8wzw00004552

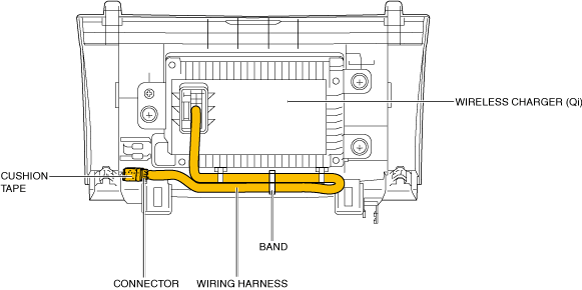

7.  Secure the wiring harness with the band at the position shown in the figure.

ac8wzw00004553

8.  Install the wireless charger (Qi). (See WIRELESS CHARGER (Qi) REMOVAL/INSTALLATION.)

9.  Install the shift panel. (See SHIFT PANEL REMOVAL/INSTALLATION.)

10.  Install the selector lever knob. (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION.)

11.  Install the console side panel (rear console). (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION.)

12.   Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)
