HORN REMOVAL/INSTALLATION

id092200012600

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

4.  Disconnect the connector.

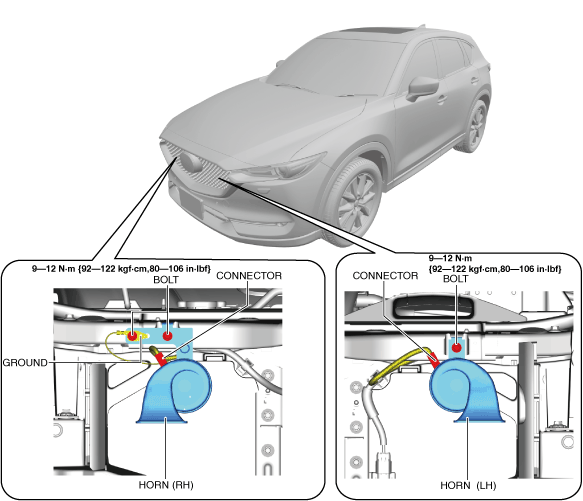

ac5uuw00007203

5.  Remove the bolt.

6.  Remove the ground. (RH only)

7.  Remove the horn.

8.  Install in the reverse order of removal.

9.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
