FRONT ULTRASONIC SENSOR SHORT-CORD REMOVAL/INSTALLATION

id092200031000

1.  Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION.)

2.  Remove the seal board upper. (See SEAL BOARD UPPER REMOVAL/INSTALLATION.)

3.  Remove the front bumper. (See FRONT BUMPER REMOVAL/INSTALLATION.)

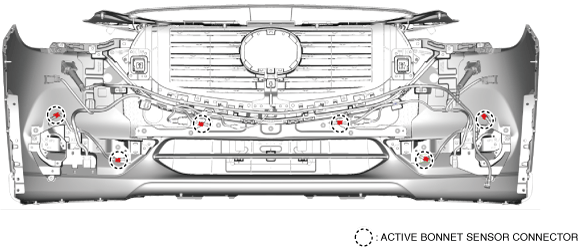

4.  Disconnect the active bonnet sensor connectors. (See ACTIVE BONNET SENSOR REMOVAL/INSTALLATION.)

ac8wzw00000571

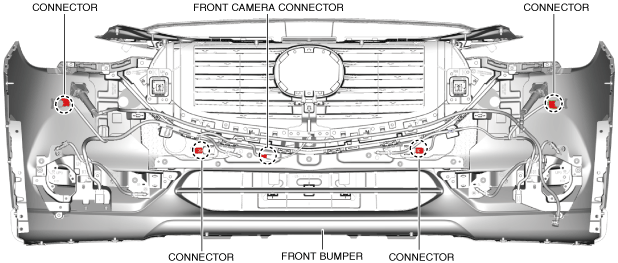

5.  Disconnect the sensor connectors and camera connector.

ac8wzw00000572

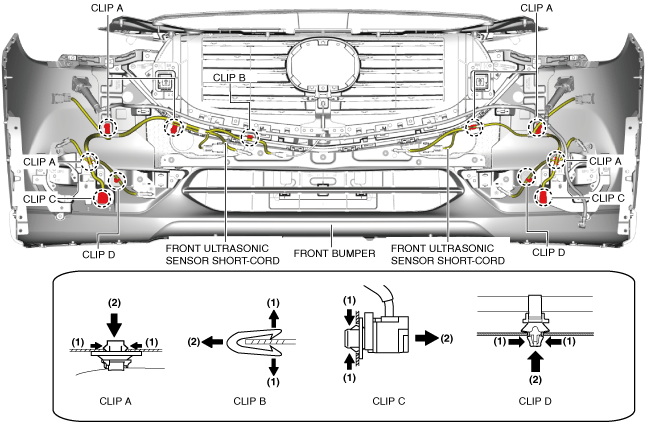

6.  While pressing the tabs of clip A in the direction of arrow (1) shown in the figure, move clip A in the direction of arrow (2) and remove it from the front bumper.

7.  While spreading the tabs of clip B in the direction of arrows (1) shown in the figure, pull clip B in the direction of arrow (2) and detach the tabs of clip B from the front bumper.

8.  While pressing the tabs of clip C in the direction of arrows (1) shown in the figure, move clip C in the direction of arrow (2) and remove it from the front bumper.

9.  While pressing the tabs of clip D in the direction of arrows (1) shown in the figure, move clip D in the direction of arrow (2) and remove it from the front bumper.

ac8wzw00000573

10.  Remove the front ultrasonic sensor short-cord.

11.  Install in the reverse order of removal.

12.  Perform the 360° view monitor system aiming. (With 360° view monitor system) (See 360°VIEW MONITOR SYSTEM AIMING.)
