AUTOMATIC TRANSAXLE WARNING LIGHT

id051700361900

Purpose/Function

• The automatic transaxle warning light illuminates when the transaxle has malfunction.

Construction

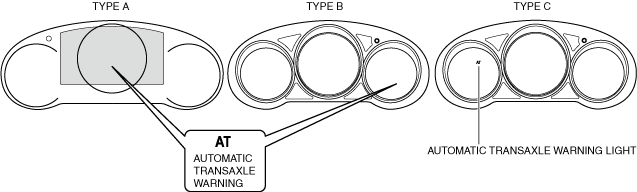

• The automatic transaxle warning light is built into the instrument cluster.

ac9wzn00002017

Operation

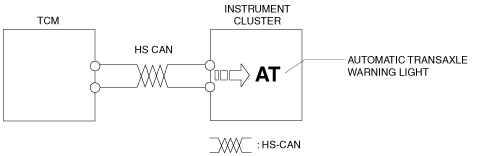

• If the transmission has a malfunction, the TCM sends an automatic transaxle warning light illumination request signal to the instrument cluster.

ac5wzn00002794

• The TCM illuminates the automatic transaxle warning light for approx. 2 s after the ignition is switched ON to perform a bulb check of the automatic transaxle warning light. (Without multi-information display)

Note

• A warning message in the center display and multi-information display are displayed. For the message content and verification method of the center display, refer to the [CENTER DISPLAY]. (See CENTER DISPLAY.)
