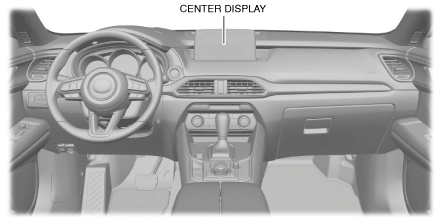

CENTER DISPLAY

id092000113600

Purpose

• iPod, iPhone, and Apple CarPlay are registered trademarks of Apple Inc.

• Android, and Android Auto are registered trademarks of Google LLC.

• iOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used underlicense.

Function

• The center display displays video images based on the signal sent by the LVDS^*1 signal from the connectivity master unit (CMU).

• The center display is touch-type LCD. The display touch position information is sent by LVDS^*1 signal to the CMU.

• The LVDS communication pathway between the CMU and the center display corresponds to HDCP^*2.

*1 :Low-Voltage Differential Signaling indicates the electrical characteristics of the signal. LVDS is a digital, wired transmission technology for the short range which adopts a differential interface having the characteristics of low voltage and low power consumption.

*2 :HDCP (High-bandwidth Digital Content Protection system) is a copyright protection technology which prevents content from being copied fraudulently. The pathway in a display device such as a display, which sends/receives digital signals from a video playback device such as a computer, is encrypted.

Temperature detection function

• The center display detects temperature using a temperature sensor.

• The center display converts the temperature detected by the temperature sensor to an electrical signal (LVDS signal) and sends it to the CMU.

Note

• If the center display receives a temperature warning pop-up screen display request signal (LVDS signal) from the CMU, it displays the temperature warning pop-up screen on the LCD.

Display information

• The information displayed by the center display is as follows: Refer to the referenced section for details of the displayed information.

Display content

Reference

Home screen

(See Home screen.)

Application screen

(See Applications screen.)

Entertainment screen

(See Entertainment screen.)

Communication screen

(See Communication screen.)

Navigation screen

(See Navigation screen.)

Setting screen

(See Settings screen.)

Display content	Reference
Home screen	(See Home screen.)
Application screen	(See Applications screen.)
Entertainment screen	(See Entertainment screen.)
Communication screen	(See Communication screen.)
Navigation screen	(See Navigation screen.)
Setting screen	(See Settings screen.)

Home screen

• The home screen displays entertainment system information.

• When the ignition is switched to ACC or ON (engine off or on), the home screen is displayed in the center display.

ac9wzn00002077

Display area

Button name

1

Applications

2

Entertainment

3

Communication

4

Navigation^*3

5

Settings

6

Apple CarPlay™^*4

Android Auto™^*5

*3 :With car-navigation system

*4 :When Apple CarPlay™ is available.

*5 :When Android Auto™ is available.

Applications screen

• Information concerning fuel economy, maintenance, and warnings can be verified.

ac9wzn00002078

Display content

Reference

Fuel Economy Monitor

(See Fuel Economy Monitor.)

Vehicle Status Monitor

(See Warning guidance.)

(See MAINTENANCE MONITOR.)

Apple CarPlay™

(See Entertainment screen.)

Android Auto™

(See Communication screen.)

Display content	Reference
Fuel Economy Monitor	(See Fuel Economy Monitor.)
Vehicle Status Monitor	(See Warning guidance.) (See MAINTENANCE MONITOR.)
Apple CarPlay™	(See Entertainment screen.)
Android Auto™	(See Communication screen.)

Fuel Economy Monitor

• Displays the fuel economy and i-ELOOP system information.

Fuel economy monitor verification procedure

1. Select the “Applications” button on the Home screen.

2. Select [Fuel Economy Monitor] on the Applications screen to display the warning guidance.

ac9wzn00001230

• The buttons on the menu screen operate as follows:

Display

Content

1

Switches the menu screen to non-display.

2

Displays the application menu screen.

3

•   Switches the fuel economy monitor display in the following order:

―  Control Status

―  Fuel Consumption

―  Effectiveness

4

Resets the fuel economy data.

5

•  Displays the following setting screen.

―  Ending screen on/off switching

―  On/off switching for function which synchronizes reset fuel economy data to trip meter.

Display	Content
	1	Switches the menu screen to non-display.
2	Displays the application menu screen.
3	• Switches the fuel economy monitor display in the following order: ― Control Status ― Fuel Consumption ― Effectiveness
4	Resets the fuel economy data.
5	• Displays the following setting screen. ― Ending screen on/off switching ― On/off switching for function which synchronizes reset fuel economy data to trip meter.

Control Status

• The i-stop operation status and the i-ELOOP power generating status are displayed.

With i-ELOOP system

Content		Reference
1	Displays the level of electricity generated by regenerative braking.	(See i-ELOOP [i-ELOOP].) (See i-stop CONTROL.)
2	Displays the amount of the electricity stored in the capacitor.
3	Displays the status of the electricity stored in the capacitor and being supplied to the electrical devices (whole vehicle in display is illuminated simultaneously).
4	Displays the accumulated fuel economy.
5	Displays the readiness status as to whether operation of the i-stop function is available.
6	Displays the operation readiness status of the i-stop function on the vehicle side (engine, battery, and A/C) using icon colouring. The blue colour indicates that the i-stop function is ready to operate, and the grey colour indicates that it is not ready for operation.
7	Displays the i-stop function status while the vehicle is stopped.
8	Indicates the operations required by the driver to operate the i-stop function while it is not operating.
9	Time active • Current i-stop time is displayed i-stop time at which the i-stop is operating. Total time • i-stop total time is displayed as the total time at which the i-stop has operated.

Fuel Consumption

• The information regarding the fuel economy is displayed.

Display

Content

Reference

1

•  Displays the fuel economy for the past 60 minutes.

―  Displays the fuel economy every minute for the past 1 to 10 minutes.

―  Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.

—

2

Displays the average fuel economy over the past 5 resets and after the current reset.

3

•  Displays the average fuel economy from when the ignition is switched ON (engine on) to the current time.

•  The average fuel economy is updated every 60 s.

•  If there is no average fuel economy data, displays “——”.

Display	Content	Reference
	1	• Displays the fuel economy for the past 60 minutes. ― Displays the fuel economy every minute for the past 1 to 10 minutes. ― Displays the fuel economy every 10 minutes for the past 10 to 60 minutes.	—
2	Displays the average fuel economy over the past 5 resets and after the current reset.
3	• Displays the average fuel economy from when the ignition is switched ON (engine on) to the current time. • The average fuel economy is updated every 60 s. • If there is no average fuel economy data, displays “——”.

Effectiveness

• The actual performance of the energy efficiency is displayed.

With i-ELOOP system and i-stop function

Content		Reference
1	The leaf graphic grows according to the amount of CO2 emissions reduced by the system effects. The cumulative total amount of leaf growth is indicated in terms of the number of tree graphics.	—
2	Displays the total driving distance which could be extended by the operation of the i-stop function.
3	Displays the percentage of time that the vehicle was stopped by the i-stop function operation out of the total amount of time that the vehicle was stopped.
4	Displays the amount of time that the i-stop function has operated.
5	Displays the total amount of time that the vehicle was stopped.

Warning guidance

• When the center display receives a warning guidance display signal (LVDS signal) from the CMU, it displays the warning guidance screen.

Note

• Display method of the warning guidance varies depending on the emergency level.

Pop-up display

― Warning message of a higher emergency level is displayed on the pop-up screen at the time the warning occurred regardless of the display content of the center display. When “OK” on the pop-up screen is selected, it switches to the previous screen before the pop-up display. The pop-up display warning can also be verified in the warning guidance list.

List display

― Warning messages displayed by methods other than pop-up display can be verified in the warning guidance screen.

Warning guidance verification procedure

1. Select the [Applications] button on the Home screen.

2. Select [Vehicle Status Monitor] on the Applications screen.

ac9wzn00001236

3. Select [Warning Guidance] on the Vehicle Status Monitor screen to display the warning guidance.

ac9uun00001181

4. Select a desired warning from the warning guidance screen.

ac5ccn00000468

Note

• If there is no warning, No Warnings found is displayed on the warning guidance screen.

am3uun00003499

Pop-up display

Screen display			Send module	Reference
Pop-up screen	List display
Pop-up screen	Title	Message
	Charging System Malfunction	Charging System Malfunction. Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.	PCM	(See CHARGING SYSTEM WARNING LIGHT/WARNING INDICATION [SKYACTIV-G 2.5T].)
	i-ELOOP Charging	i-ELOOP Charging. With the engine running, check that the charging is complete and the warning indicator is off. Have the vehicle checked by a dealer if this Indicator stays On.	PCM	(See i-ELOOP [i-ELOOP].)
	Engine Coolant Temperature High	Engine is Overheating. Stop the vehicle immediately in a safe place, turn Off the engine, and take proper actions. Refer to the Owner's Manual.	Instrument cluster	(See HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)/HIGH ENGINE COOLANT TEMPERATURE WARNING INDICATION/LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE).)
	—^*4	—^*4	CMU/center display	—

*4 :Because the temperature warning is not displayed in the list, it cannot be verified using the list.

List display

Screen display			Send module	Reference
Warning light	Title	Message	Send module	Reference
	Low Engine Oil Pressure	Low engine oil pressure. Stop the vehicle immediately in a safe place, turn off the engine, and inspect the engine oil level. Add oil if necessary. Have the vehicle checked by a dealer immediately if this indicator turns on after adding oil or the engine oil level is OK.	PCM	(See ENGINE OIL WARNING LIGHT [SKYACTIV-G 2.5T].)
	Engine Oil Level Low	Engine oil level is too low. Please add oil.	PCM	(See ENGINE OIL LEVEL WARNING LIGHT/ENGINE OIL LEVEL WARNING INDICATION [SKYACTIV-G 2.5T].)
	Engine Oil Level High	Engine oil level is too high. Please replace oil.	PCM	(See WRENCH INDICATOR LIGHT/WRENCH INDICATION [SKYACTIV-G 2.5T].)
	Engine Oil Level Sensor Malfunction	There is a malfunction in the engine oil level sensor. Please have the vehicle checked by a Mazda dealer.	PCM	(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
	i-ELOOP System Malfunction	i-ELOOP system malfunction. Have the vehicle checked by a dealer if this indicator stays on.	PCM (i-ELOOP)	(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
	Low Brake Fluid	Brake fluid level is low. Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.	Body control module (BCM)	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
	Brake System Malfunction	Electronically-controlled brake system malfunction. Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.	DSC HU/CM
	Brake System Malfunction	Brake Fluid Level is Low or Brake System Malfunction. Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.	DSC HU/CM
	Brake System Malfunction	Regenerative Braking or Electronically-Controlled Brake System Malfunction. Stop the vehicle immediately in a safe place and have the vehicle checked by a dealer.	DSC HU/CM
	Parking Brake Malfunction	A malfunction has occurred in the parking brake system. Consult your Mazda Dealer for inspection.	Electric parking brake control module	(See ELECTRIC PARKING BRAKE INDICATOR LIGHT, ELECTRIC PARKING BRAKE WARNING LIGHT.)
	Parking Brake Malfunction		Electric parking brake control module
	Low Tire Air Pressure	Low tire air pressure in one or more tires. Check the air pressure of the tires and adjust to the correct air pressure. Press the TPMS SET switch after adjusting the tire pressure until you hear a beep.	DSC HU/CM	(See TIRE PRESSURE MONITORING SYSTEM (TPMS) [INDIRECT TIRE PRESSURE MONITORING SYSTEM (TPMS) (WITH TPMS SET SWITCH)].)
	Engine Coolant Temperature High	Engine is starting to run hot. Drive slowly or stop the vehicle until the indicator stops flashing. If it keeps flashing, even after stopping the vehicle, take proper actions. Refer to the Owner's Manual.	Instrument cluster	(See HIGH ENGINE COOLANT TEMPERATURE WARNING LIGHT (RED)/HIGH ENGINE COOLANT TEMPERATURE WARNING INDICATION/LOW ENGINE COOLANT TEMPERATURE INDICATOR LIGHT (BLUE).)
	Road Surface Icing Caution	Outside temperature is 4°C or lower. Watch for icy road surfaces while driving.	Instrument cluster	(See AMBIENT TEMPERATURE DISPLAY.)
	Low Fuel	Fuel tank level is low. Refuel the vehicle soon.	Instrument cluster	(See LOW FUEL WARNING LIGHT/LOW FUEL WARNING INDICATION.)
	Power Steering System Error	Electric power steering malfunction. Stop the vehicle in a safe place and turn off the engine. Have the vehicle checked by a dealer if this indicator stays on.	EPS control module	(See POWER STEERING MALFUNCTION INDICATOR LIGHT.)
	Engine System Malfunction	Engine system malfunction. Have the vehicle checked by a dealer immediately.	PCM	(See CHECK ENGINE LIGHT [PCM (SKYACTIV-G 2.5T)].)
	Safety Restraint System Error	Airbag/seatbelt malfunction. Have the vehicle checked by a dealer immediately	SAS control module	(See AIR BAG/SEAT BELT PRE-TENSIONER SYSTEM WARNING LIGHT.)
	ABS Malfunction	Anti-lock brake system (ABS) malfunction. Have the vehicle checked by a dealer immediately.	DSC HU/CM	(See BRAKE SYSTEM/ABS WARNING LIGHT.)
	DSC Malfunction	Dynamic stability control (DSC) or traction control system (TCS) malfunction. Have the vehicle checked by a dealer immediately.	DSC HU/CM	(See TCS/DSC INDICATOR LIGHT.)
	DSC Malfunction	Dynamic stability control (DSC), traction control system (TCS), or hill launch assist (HLA) malfunction. Have the vehicle checked by a dealer immediately.	DSC HU/CM	(See TCS/DSC INDICATOR LIGHT.)
	BSM Malfunction	Blind spot monitoring (BSM)/Rear cross traffic alert (RCTA) malfunction. Check for abnormalities in the rear bumper surface and clean if dirty or covered with snow. Have the vehicle checked by a dealer if this indicator stays on.	Blind spot monitoring (BSM) control module	(See BLIND SPOT MONITORING (BSM) SYSTEM.)
	4WD System Inspection	The differential oil temperature is abnormally high or a large rotational difference has occurred in the front and rear tires (such as when trying to get out from mud). Stop the vehicle in a safe place and continue to drive after the warning indicator has turned off. Have the vehicle checked by a dealer if this indicator stays on.	4WD control module	(See 4WD WARNING LIGHT.)
	4WD System Malfunction	4WD system malfunction or tire size is different between the front and rear tires. Have the vehicle checked by a dealer.	4WD control module	(See 4WD WARNING LIGHT.)
	TPMS System Malfunction	Tire pressure monitoring system (TPMS) malfunction. Have the vehicle checked by a dealer.	DSC HU/CM	(See TIRE PRESSURE MONITORING SYSTEM (TPMS) [INDIRECT TIRE PRESSURE MONITORING SYSTEM (TPMS) (WITH TPMS SET SWITCH)].)
	i-stop System Malfunction	i-stop operation is not possible. Have your vehicle checked at a Mazda dealer.	PCM	(See i-stop INDICATOR LIGHT (GREEN) [SKYACTIV-G 2.5T].) (See i-stop WARNING LIGHT (AMBER) [SKYACTIV-G 2.5T].)
	Key Battery Low	Key battery is low. Replace the key battery immediately.	Start stop unit	(See KEY WARNING LIGHT (RED)/KEY INDICATOR LIGHT (GREEN)/KEY INDICATION.)
	Keyless Entry Malfunction	Keyless entry system malfunction. Have the vehicle checked by a dealer.	Start stop unit
	Headlight System Malfunction	A malfunction has occurred in the headlight system. If the warning light blinks continuously, consult your Mazda Dealer.	Adaptive LED headlights control module/front body control module (FBCM)	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).)
	Auto. Transmission Malfunction	Automatic transmission malfunction. Damage to the vehicle may occur if you continue to drive. Have the vehicle checked by a dealer immediately.	TCM	(See AUTOMATIC TRANSAXLE WARNING LIGHT.)
	Battery Mgmt. Sys. Malfunction	Battery management system malfunction. Have the vehicle checked by a dealer.	PCM	(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
	Brake Override Sys. Malfunction	Brake switch malfunction. Have the vehicle checked by a dealer immediately.	PCM	(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
	SCBS Malfunction	Smart city brake support (SCBS) malfunction. Have the vehicle checked by a dealer immediately.	Laser sensor/FSC	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
	SCBS Malfunction	Smart city brake support (SCBS) malfunction. Clean the front windshield. Have the vehicle checked by a dealer if this indicator stays on.	Laser sensor/FSC
	SCBS Malfunction	Smart city brake support (SCBS) malfunction. Defrost the front windshield. Have the vehicle checked by a dealer if this indicator stays on.	Laser sensor/FSC
	SCBS Unavailable	Smart city brake support (SCBS) currently unavailable.	Laser sensor/FSC
	MRCC Malfunction	Mazda radar cruise control (MRCC) malfunction. Have the vehicle checked by a dealer.	Radar unit	(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
	SBS Malfunction	There is an error in the SBS System. Have your vehicle checked at a Mazda dealer.	Radar unit	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
	DRSS Malfunction	There is an error in the DRSS System. Have your vehicle checked at a Mazda dealer.	Radar unit	(See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
	SBS/MRCC Radar Malfunction	The SBS/MRCC Radar (Sensor) is soiled. Clean the entire surface of the Radar (Sensor).	Radar unit	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.) (See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
	SBS/MRCC Radar Malfunction		Radar unit
	SBS/MRCC/DRSS Radar Error	The SBS/MRCC/DRSS Radar (Sensor) is soiled. Clean the entire surface of the Radar (Sensor).	Radar unit	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.) (See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.) (See DISTANCE RECOGNITION SUPPORT SYSTEM (DRSS).)
	SBS/MRCC/DRSS Radar Error		Radar unit
	MRCC Unavailable	Mazda radar cruise control (MRCC) currently unavailable.	Radar unit	(See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
	SBS Brake Unavailable	SBS Brake currently unavailable.	Radar unit	(See SMART BRAKE SUPPORT/SMART CITY BRAKE SUPPORT (SBS/SCBS) OFF INDICATOR LIGHT.)
	SBS Brake/MRCC Unavailable	SBS Brake/MRCC currently unavailable.	Radar unit	(See SMART BRAKE SUPPORT (SBS).) (See MAZDA RADAR CRUISE CONTROL (MRCC) WARNING INDICATION.)
	SBS Brake/MRCC Unavailable	SBS Brake/MRCC currently unavailable.	Radar unit
	LDWS Malfunction	Lane departure warning system (LDWS) Malfunction. Have the vehicle checked by a dealer.	FSC	(See LDWS WARNING INDICATION.)
	LAS Malfunction	Lane-keep Assist System (LAS) Malfunction. Have the vehicle checked by a dealer.	FSC	(See LANE-KEEP ASSIST SYSTEM.)
	ALH Malfunction	Adaptive LED Headlights (ALH) malfunction. Have the vehicle checked by a dealer.	FSC	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).)
	ALH/LDWS Camera Malfunction	Adaptive LED Headlights (ALH)/Lane departure warning system (LDWS) Malfunction. Clean the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.	FSC	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).) (See LDWS WARNING INDICATION.)
	ALH/LDWS Camera Malfunction		FSC
	ALH/LAS Camera Malfunction	Adaptive LED Headlights (ALH)/Lane-keep Assist System (LAS) Malfunction. Clean the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.	FSC	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).) (See LANE-KEEP ASSIST SYSTEM.)
	ALH/LAS Camera Malfunction		FSC
	ALH/LDWS System Malfunction	High Beam Control (HBC)* and/or Lane Departure Warning System (LDWS)* Malfunction. Have the vehicle checked by a dealer if this Indicator stays On. *Existence of these features depends on models/trim levels.	FSC	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).) (See LDWS WARNING INDICATION.)
	ALH/LDWS System Malfunction		FSC
	ALH/LDWS System Malfunction	Adaptive LED Headlights (ALH)/Lane departure warning system (LDWS) malfunction. Defrost the windshield. Have the vehicle checked by a dealer if this indicator stays on.	FSC	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).) (See LDWS WARNING INDICATION.)
	ALH/LDWS System Malfunction		FSC
	ALH/LAS System Malfunction	Adaptive LED Headlights (ALH)/Lane-keep Assist System (LAS) Malfunction. Have the vehicle checked by a dealer if this Indicator stays On.	FSC	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).) (See LANE-KEEP ASSIST SYSTEM.)
	ALH/LAS System Malfunction		FSC
	ALH/LAS System Malfunction	Adaptive LED Headlights (ALH)/Lane-keep Assist System (LAS) Malfunction. Defrost the Windshield. Have the vehicle checked by a dealer if this Indicator stays On.	FSC	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).) (See LANE-KEEP ASSIST SYSTEM.)
	ALH/LAS System Malfunction		FSC
	SCBS Unavailable	Smart City Brake Support system is temporarily disabled due to excessive heat in the passenger compartment. The Smart City Brake Support system will be enabled once the passenger compartment has cooled sufficiently.	Laser sensor/FSC	(See SMART CITY BRAKE SUPPORT (SCBS) INDICATOR LIGHT/SMART CITY BRAKE SUPPORT (SCBS) WARNING LIGHT.)
	LDWS Unavailable	Lane Departure Warning System is temporarily disabled due to excessive heat in the passenger compartment. The Lane Departure Warning System will be enabled once the passenger compartment has cooled sufficiently.	FSC	(See LDWS WARNING INDICATION.)
	LAS Unavailable	Lane-keep Assist System is temporarily disabled due to excessive heat in the passenger compartment. Lane-keep Assist System will be enabled once the passenger compartment has cooled sufficiently.	FSC	(See LANE-KEEP ASSIST SYSTEM INDICATION.)
	ALH Unavailable	Adaptive LED Headlights are temporarily disabled due to excessive heat in the passenger compartment. The Adaptive LED Headlights will be enabled once the passenger compartment has cooled sufficiently.	FSC	(See ADAPTIVE LED HEADLIGHT WARNING LIGHT (AMBER)/ADAPTIVE LED HEADLIGHT WARNING INDICATION/ADAPTIVE LED HEADLIGHT INDICATOR LIGHT (GREEN).)
	Vehicle System Malfunction	Vehicle system malfunction. Have the vehicle checked by a dealer.	PCM	(See MASTER WARNING LIGHT/MASTER WARNING INDICATION.)
	Low Washer Fluid	Washer fluid level is low. Refill the washer fluid.	Front body control module (FBCM)	(See WASHER FLUID-LEVEL SENSOR.)

Apple CarPlay™

Apple CarPlay™ home screen display procedure

• The Apple CarPlay™ home screen is displayed when any of the following operations are performed.

― Select [Applications] on home screen and then select [Apple CarPlay™] on applications screen.

― Select [Entertainment] on home screen and then select [Apple CarPlay™] on entertainment screen.

― Select [Apple CarPlay™] on home screen.

― Long-press center display/commander switch HOME button.

• The display content is as follows.

Apple CarPlay™ mode home screen

Display	Content
	1	Launch the Apple CarPlay™ application.
	2	Display the center display home screen.
	3	Display the Apple CarPlay™ home screen.

Android Auto™

Android Auto™ home screen display procedure

• The Android Auto™ home screen is displayed when any of the following operations are performed.

― Select [Applications] on home screen and then select [Android Auto™] on applications screen.

― Select [Entertainment] on home screen and then select [Android Auto™] on entertainment screen.

― Select [Android Auto™] on home screen.

― Long-press center display/commander switch HOME button.

• The display content is as follows.

Android Auto™mode home screen

Display	Content
	1	Displays the use history of each application. The displayed contents differdepending on the application that has been started and its status.
	2	Switches to the map application.
	3	Switches to the call mode.
	4	Displays the Android Auto™ home screen.
	5	Switches to the Music application.
	5	Switches to the Mazda Connect home screen.

Entertainment screen

• When the entertainment button on the home screen is selected, the entertainment screen is displayed. The following audio functions in the table below are available.

ac9uun00001053

Display content

Function

FM

Switches to FM radio screen.

AM

Switches to AM radio screen.

Pandora^® Radio

Switches to Pandora^® screen.

Note

•  Pandora^® is not displayed in gray even if the connected mobile device is not compatible with Pandora^®.

Stitcher^™

Switches to Stitcher™.

Note

•  Stitcher^™ is not displayed in gray even if the connected mobile device is not compatible with Stitcher^™.

Aha^™ Radio

Switches to Aha^™ radio screen.

Note

•  Aha^™ radio is not displayed in gray even if the connected mobile device is not compatible with Aha^™ radio.

Bluetooth^®<Device Name>

Switches to Bluetooth^® audio screen.

Note

•  If available, the connecting device name is displayed. When Bluetooth^® is not available, such as no device is connected, only Bluetooth^® is displayed.

USB1<Device Name>

Switches to USB audio screen.

Note

•  If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.

USB2<Device Name>

Switches to USB audio screen.

Note

•  If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.

AUX

Switches to AUX screen.

Display content	Function
FM	Switches to FM radio screen.
AM	Switches to AM radio screen.
Pandora^® Radio	Switches to Pandora^® screen. Note • Pandora^® is not displayed in gray even if the connected mobile device is not compatible with Pandora^®.
Stitcher^™	Switches to Stitcher™. Note • Stitcher^™ is not displayed in gray even if the connected mobile device is not compatible with Stitcher^™.
Aha^™ Radio	Switches to Aha^™ radio screen. Note • Aha^™ radio is not displayed in gray even if the connected mobile device is not compatible with Aha^™ radio.
Bluetooth^®<Device Name>	Switches to Bluetooth^® audio screen. Note • If available, the connecting device name is displayed. When Bluetooth^® is not available, such as no device is connected, only Bluetooth^® is displayed.
USB1<Device Name>	Switches to USB audio screen. Note • If available, the connecting device name is displayed. When USB1 is not available, such as no device is connected, only USB1 is displayed.
USB2<Device Name>	Switches to USB audio screen. Note • If available, the connecting device name is displayed. When USB2 is not available, such as no device is connected, only USB2 is displayed.
AUX	Switches to AUX screen.

Note

• Items requiring media, such as CDs or AUX, are displayed in gray and not available if connection of the media cannot be detected.

• When iPhone® is connected to the USB port of the auxiliary jack/USB port/SD card slot hub, Apple CarPlay™ is indicated at the position of USB1 indicated on the center display.

• When Android™ is connected to the USB port of the auxiliary jack/USB port/SD card slot hub, Android Auto™ is indicated at the position of USB1 indicated on the center display.

Communication screen

• SMS (Short Message Service), and Hands-free telephone (HF/TEL) functions can be used.

aaxjjn00003204

Display content

Function

Active Call

Switches to the incoming call screen. (when receiving an incoming call)

Notifications

Switches to the notification screen.

Note

• When there is no notification, displayed in gray and not available.

Favorites

Switches to the favorite screen.

Contacts

Displays the phone book.

Call History

Displays the call history.

Dial Phoned

Switches to the dial screen for phone number input.

SMS

Switches to the SMS screen.

Setting

Switches ON/OFF of the SMS notification function.

Display content	Function
Active Call	Switches to the incoming call screen. (when receiving an incoming call)
Notifications	Switches to the notification screen. Note • When there is no notification, displayed in gray and not available.
Favorites	Switches to the favorite screen.
Contacts	Displays the phone book.
Call History	Displays the call history.
Dial Phoned	Switches to the dial screen for phone number input.
SMS	Switches to the SMS screen.
Setting	Switches ON/OFF of the SMS notification function.

Note

• If Bluetooth^® communication is not established between a mobile device such as a Bluetooth^®-enabled smart phone, the functions dependent on the mobile device are displayed in gray and they are not available.

• IF there any unread notification or SMS, the number of unread messages is displayed beside each item name. The number of missed call is displayed next to “Call History”.

Navigation screen

• When the navigation button on the home screen is selected, the navigation screen is displayed. Navigation information such as the current position and route guidance to destination is displayed on this screen.

Settings screen

• The following settings can be changed. For details, refer to the [ENTERTAINMENT SYSTEM] setting function. (See ENTERTAINMENT SYSTEM.)

am3zzn00004421

Tab

Reference

AD-Disp

(See ENTERTAINMENT SYSTEM.)

Active driving display setting

Display

Display setting

Safety

Personalization setting function (vehicle setting)

Sound

Sound setting

Clock

Clock setting

Vehicle

Personalization setting function (vehicle setting)

Devices

Bluetooth^® pairing

System

System setting

Tab	Reference
AD-Disp	(See ENTERTAINMENT SYSTEM.)	Active driving display setting
Display	Display setting
Safety	Personalization setting function (vehicle setting)
Sound	Sound setting
Clock	Clock setting
Vehicle	Personalization setting function (vehicle setting)
Devices	Bluetooth^® pairing
System	System setting

Structure/Construction

• The center display is installed in the center of the dashboard.

• The center display has a built-in temperature sensor.

ac9wzn00001240

Input/output signal table

Terminal

Signal

1A

—

1B

Ground

1C

—

1D

—

1E

—

1F

—

1G

ACC

1H

B+

2A

—

2B

LVDS (+)

2C

—

2D

LVDS (-)

Terminal	Signal
	1A	—
1B	Ground
1C	—
1D	—
1E	—
1F	—
1G	ACC
1H	B+
	2A	—
2B	LVDS (+)
2C	—
2D	LVDS (-)

Fail-safe

• Not applicable

Display area	Button name
1	Applications
2	Entertainment
3	Communication
4	Navigation^*3
5	Settings
6	Apple CarPlay™^*4
6	Android Auto™^*5
