A/C UNIT

id071100001100

Front

Purpose, Function

•  The front A/C unit opens/closes the air mix doors and the airflow mode doors.

Structure/Construction

•  The size and weight of the front A/C unit has been reduced by integrating the cooling and heater units.

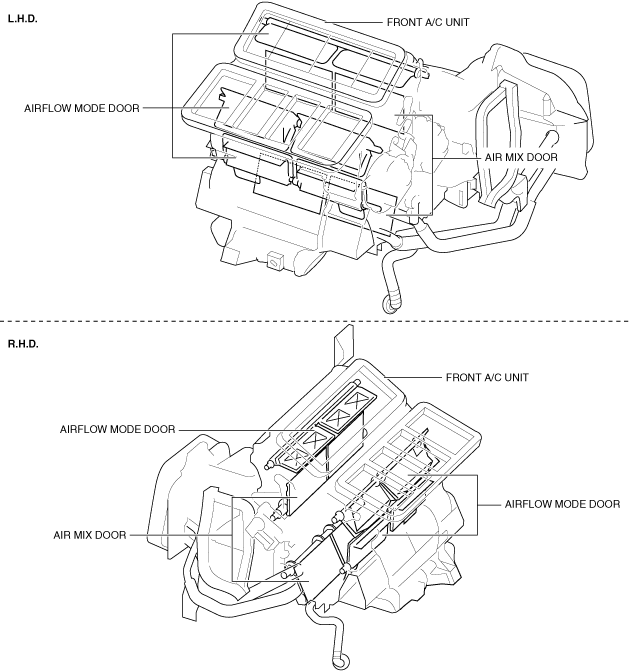

•  The front A/C unit consists of the following parts.

ac9wzn00001081

Operation

•  For the operation of the front A/C unit, refer to the [VENTILATION SYSTEM]. (See VENTILATION SYSTEM.)

Fail-safe

•  Not applicable

Rear

Purpose, Function

•  The rear A/C unit opens/closes the air mix door and the airflow mode door.

•  The rear A/C unit takes in the air in the cabin and sends it.

Structure/Construction

•  The size and weight of the rear A/C unit has been reduced by integrating the cooling and heater units.

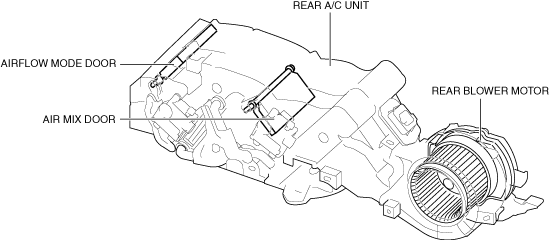

•  The rear A/C unit consists of the following parts.

ac9wzn00001082

Operation

•  For the operation of the rear A/C unit, refer to the [VENTILATION SYSTEM] and [BLOWER SYSTEM]. (See VENTILATION SYSTEM.)(See BLOWER SYSTEM.)

Fail-safe

•  Not applicable
